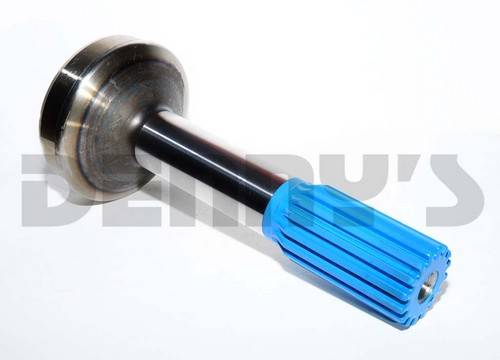

Dana Spicer 3-40-1621 Driveshaft Spline 7.344 inches 1.5 inch x 16 fits 3.5 inch .083 wall steel tube
Part Number:
3-40-1621


UPC:
023913229382
Your Cost $76.95
STATUS:  IN STOCK

DANA SPICER 3-40-1621

For spline and slip style driveshafts

  • Fits any series 16 Spline SLIP YOKE designed for 1.5 inch diameter spline
  • Fits 3.5 inch OUTSIDE TUBE Diameter
  • 3.345 inch butt diameter fits .083 WALL STEEL TUBING
  • Major SPLINE Diameter = 1.5 inches
  • SPLINES = 16
  • K = 7.344 in.
  • L = 2.500 in.
    • Blue Glidecoated Spline for long life
  • R = 6.406 in.
  • Steel

Spicer
Dana Spicer 3-40-1621 Driveshaft Spline 7.344 inches 1.5 inch x 16 fits 3.5 inch .083 wall steel tube
Dana Spicer 3-40-1621 Driveshaft Spline 7.344 inches 1.5 inch x 16 fits 3.5 inch .083 wall steel tube
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $76.95

DANA SPICER 3-40-1621

For spline and slip style driveshafts

  • Fits any series 16 Spline SLIP YOKE designed for 1.5 inch diameter spline
  • Fits 3.5 inch OUTSIDE TUBE Diameter
  • 3.345 inch butt diameter fits .083 WALL STEEL TUBING
  • Major SPLINE Diameter = 1.5 inches
  • SPLINES = 16
  • K = 7.344 in.
  • L = 2.500 in.
    • Blue Glidecoated Spline for long life
  • R = 6.406 in.
  • Steel



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions
