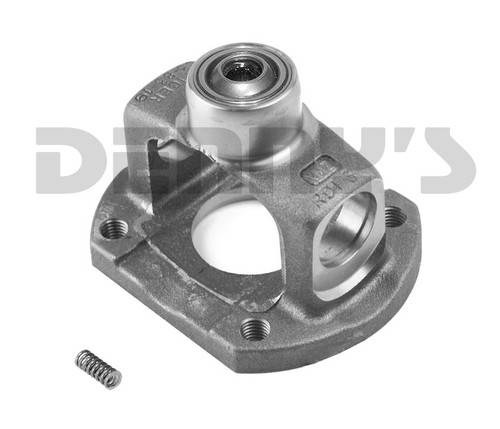

Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange

Part Number:
212024X

UPC:

023913229542

Your Cost $91.95

STATUS: IN STOCK

Dana Spicer 212024X

Double Cardan CV Flange Yoke

Fits Ford Bronco, F150, F250, F350 transfer case rear output flange with 2 inch pilot diameter
- NOTE: Some had the 2.68 inch pilot diameter ...please check this before ordering
- DOES NOT FIT any greaseable style 1350 series stud yokes
- DOES NOT FIT OEM Driveshaft with press on ball.
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 2 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)

Please see the bottom of this page for new rubber boot

Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $91.95

Dana Spicer 212024X

Double Cardan CV Flange Yoke

Fits Ford Bronco, F150, F250, F350 transfer case rear output flange with 2 inch pilot diameter
- NOTE: Some had the 2.68 inch pilot diameter ...please check this before ordering
- DOES NOT FIT any greaseable style 1350 series stud yokes
- DOES NOT FIT OEM Driveshaft with press on ball.
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 2 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)

IMPORTANT: The "SPICER" name must be visible on your original H-Yoke and Flange yoke to use these replacement parts.

If you have a driveshaft that looks like the one in these photos then this cv will NOT work.

Please notice the shape of the mounting flange...if yours looks like the mounting flange in the photo on the left then this CV will not fit.
Please notice the squared shape of the H-Yoke around the holes for the u-joint cap and snap ring in the photo on the right. ... If yours has the squared shape then this CV will not fit.
If you have a driveshaft with a pressed on ball on the cv stud yoke then this cv will NOT work.

Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange
