Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

C726-40E Complete RIGHT SIDE Axle Assembly with 18 SPLINE Inner fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING
Part Number:
C726-40E


UPC:
Diagram Number:
40
Your Cost $545.95
STATUS:  IN STOCK - FREE SHIPPING

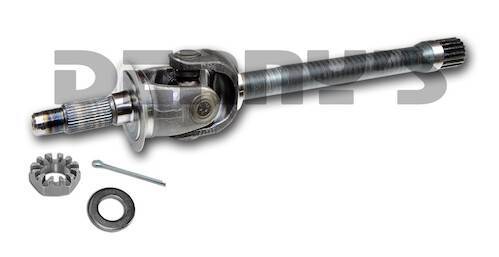

Part Number: C726-40E

Complete RIGHT Front Axle Assembly fits Passenger Side

  • Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
    • Fits 2000, 2001, 2002 model years ONLY
  • 18 spline inner for disconnect coupler
  • 33 spline outer
  • Fully Assembled and ready to install.
    • Axle Nut, Washer, Cotter Pin and Bushing - Included
Spicer
C726-40E Complete RIGHT SIDE Axle Assembly with 18 SPLINE Inner fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING
C726-40E Complete RIGHT SIDE Axle Assembly with 18 SPLINE Inner fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $545.95
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Part Number: C726-40E

Complete RIGHT Front Axle Assembly fits Passenger Side

  • Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT AXLE
    • Fits 2000, 2001, 2002 model years ONLY
  • 18 spline inner for disconnect coupler
  • 33 spline outer
  • Fully Assembled and ready to install.
    • Axle Nut, Washer, Cotter Pin and Bushing - Included
  • Comes with BUSHING factory installed in 18 spline end of inner axle
    • This bushing is required for proper alignment of inner axle shaft with intermediate shaft for smooth operation of disconnect coupler


DIMENSIONS:

  • Dimension "A" = 26.18 inches
  • Dimension "B" = 7.4
  • Dimension "B1" = 1.41 inch diameter with 33 splines
  • Dimension "C1" = 1.90 inch diameter with 18 Splines
  • Dimension "C" = 18.79 inches
  • U-Joint Snap Ring Dimension = 3 inches
  • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )



image/jpeg
C726-40E Complete RIGHT SIDE Axle Assembly with 18 SPLINE Inner fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

C726-40E Complete RIGHT SIDE Axle Assembly with 18 SPLINE Inner fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - FREE SHIPPING

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.
You May Also Need These Parts to Complete the Job
Dana Spicer 46085 Nut and 45523 Washer set 1994 -2002 Dodge Ram 1500, 2500, 3500 Outer Axle 4x4 with Dana 44 and Dana 60 Front
$9.20
Dana Spicer 49490 Intermediate Shaft 18 Spline at Disconnect 32 spline at Diff fits Passenger Side 2000, 2001, 2002 DODGE Ram 2500, 3500 with Dana 60 Disconnect front axle
$129.95
