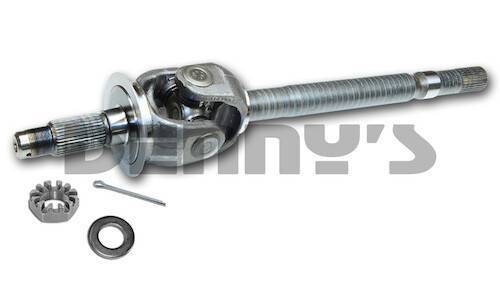

C726-40F Complete LEFT SIDE Axle Assembly with hardware fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - 32 spline inner, 33 spline outer

Part Number:
C726-40F

UPC:

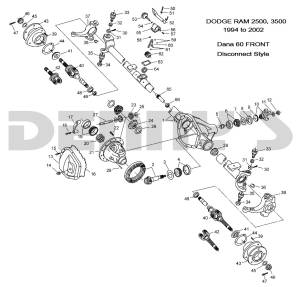

Diagram Number:
40

Your Cost $485.95

STATUS: IN STOCK - FREE SHIPPING

Part Number: C726-40F

Complete LEFT Front Axle Assembly fits Drivers Side

Fits Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT FRONT AXLE
- Fits 2000, 2001, 2002 model years ONLY
32 spline inner
33 spline outer
Dana Spicer Fully Assembled Axle ready to install
- Axle Nut, washer and cotter pin included

C726-40F Complete LEFT SIDE Axle Assembly with hardware fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - 32 spline inner, 33 spline outer

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $485.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Part Number: C726-40F

Complete LEFT Front Axle Assembly fits Drivers Side

Fits Dodge RAM 2500HD and 3500 4x4 with DANA 60 DISCONNECT FRONT AXLE
- Fits 2000, 2001, 2002 model years ONLY
32 spline inner
33 spline outer
Dana Spicer Fully Assembled Axle ready to install
- Axle Nut, washer and cotter pin included

DIMENSIONS:

Dimension "A" = 26.5 inches
Dimension "B" = 7.4
Dimension "B1" = 1.41 inch diameter with 33 splines
Dimension "C1" = 1.37 inch diameter with 32 Splines
Dimension "C" = 19.13 inches
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

C726-40F Complete LEFT SIDE Axle Assembly with hardware fits 2000, 2001, 2002 DODGE Ram 2500HD, 3500 with DANA 60 DISCONNECT Front Axle - 32 spline inner, 33 spline outer
