SONNAX T2-3-13131HP FORGED SLIP YOKE 1310 series Fits Muncie, Borg Warner, Richmond, T-400, 4L80, 4L85 with 32 spline output 1.886 barrel OD - FREE SHIPPING

Part Number:
T2-3-13131HP

UPC:

Your Cost $206.10

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

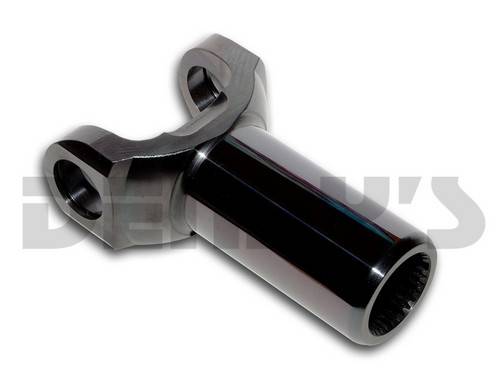

SONNAX T2-3-13131HP

Transmission Slip Yoke FORGED STEEL

Fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 transmissions with 32 spline output

1310 series

FORGED STEEL
Length to center of u-joint... Dimension #1 = 4 7/8 inches
Barrel Diameter... Dimension #2 = 1.886 inches
Barrel Length... Dimension #3 = 3 1/4 inches
U-joint cap diameter... Dimension #4 = 1 1/16 inches
U-joint width... Dimension #5 = 3 7/32 inches
Series... 1310
Spline count... 32
Outside snap ring style

SONNAX T2-3-13131HP FORGED SLIP YOKE 1310 series Fits Muncie, Borg Warner, Richmond, T-400, 4L80, 4L85 with 32 spline output 1.886 barrel OD - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $206.10

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

SONNAX T2-3-13131HP

Transmission Slip Yoke FORGED STEEL

Fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 transmissions with 32 spline output

1310 series

FORGED STEEL
Length to center of u-joint... Dimension #1 = 4 7/8 inches
Barrel Diameter... Dimension #2 = 1.886 inches
Barrel Length... Dimension #3 = 3 1/4 inches
U-joint cap diameter... Dimension #4 = 1 1/16 inches
U-joint width... Dimension #5 = 3 7/32 inches
Series... 1310
Spline count... 32
Outside snap ring style

SONNAX T2-3-13131HP FORGED SLIP YOKE 1310 series Fits Muncie, Borg Warner, Richmond, T-400, 4L80, 4L85 with 32 spline output 1.886 barrel OD - FREE SHIPPING
