AMC 20 REAR

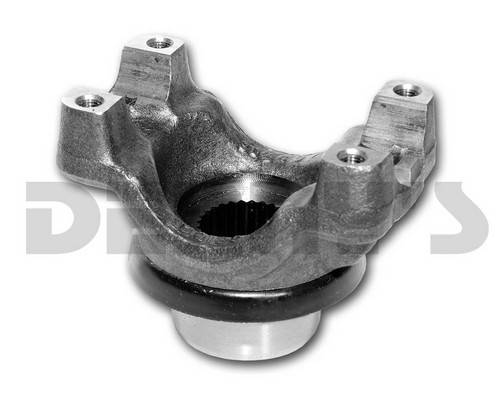

Dana Spicer 3-4-11931-1X Pinion Yoke 1350 series fits Jeep AMC 20 rear end with 28 spline pinion

Part Number:
3-4-11931-1X

UPC:

023913231651

Your Cost $119.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 3-4-11931-1X

Pinion Yoke

1350 series
Fits Jeep AMC 20 rear end with 28 spline pinion
Strap and Bolt style
SPLINE OD = 1.229
D = 1.187
E = 3.625
Q = 1.375
R = 1.844
S = 3.031
Counterbore Depth = .120

DANA SPICER 3-4-11931-1X JEEP AMC 20 Pinion Yoke 1350 Series

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $119.95

Dana Spicer 3-4-11931-1X

Pinion Yoke

1350 series
Fits Jeep AMC 20 rear end with 28 spline pinion
Strap and Bolt style
SPLINE OD = 1.229
D = 1.187
E = 3.625
Q = 1.375
R = 1.844
S = 3.031
Counterbore Depth = .120

DANA SPICER 3-4-11931-1X JEEP AMC 20 Pinion Yoke 1350 Series
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54
DANA SPICER 5-3615X Universal Joint 1350 Series COATED for ALUMINUM DRIVESHAFTS Part#: 5-3615X $37.25	DANA SPICER 3-70-28X Strap and Bolt set Part#: 3-70-28X $7.95
