DANA SPICER 2-3-6081X Slip Yoke Fits MUNCIE transmissions with 27 spline output, 5 1/2 inch 1310 series

Part Number:
2-3-6081X

UPC:

023913228965

Your Cost ~~$67.95~~ Sale Price $62.95

You Save $5.00

STATUS: IN STOCK

DANA SPICER 2-3-6081X

1310 Series 27 spline Powerglide, Turbo 350, 700R, 200R and 4L60 Transmission Slip yoke. Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 27 spline manual transmissions and other GM automatic transmissions with 27 spline output. Overall length is 1/2 inch longer and has more operating angle than part number 2-3-4911X

DANA SPICER 2-3-6081X Slip Yoke Fits ALL MUNCIE transmissions with 27 spline output, 5 1/2 inch 1310 series

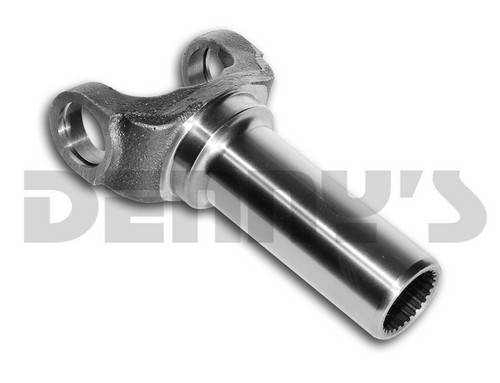

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$67.95~~ Sale Price $62.95

You Save $5.00

DANA SPICER 2-3-6081X

1310 Series 27 spline Powerglide, Turbo 350, 700R, 200R and 4L60 Transmission Slip yoke.

Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 27 spline manual transmissions and other GM automatic transmissions with 27 spline output.
Overall length is 1/2 inch longer and has more operating angle than part number 2-3-4911X
Length to center of u-joint... Dimension #1 = 5 1/2 inches
Barrel Diameter... Dimension #2 = 1 1/2 inches
Barrel Length... Dimension #3 = 3 5/8 inches
U-joint cap diameter... Dimension #4 = 1 1/16 inches
U-joint width... Dimension #5 = 3 7/32 inches
Series... 1310
Spline count... 27

DANA SPICER 2-3-6081X Slip Yoke Fits ALL MUNCIE transmissions with 27 spline output, 5 1/2 inch 1310 series
