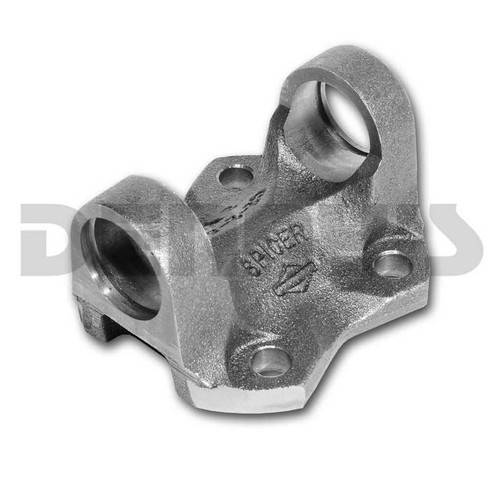

Dana Spicer 2-2-349 Flange Yoke Replacement for old Dodge Detroit Pot Body Style Ball and Trunion Driveshafts 1310 series 3.625 pilot diameter

Part Number:
2-2-349

UPC:

023913232382

Your Cost $62.95

STATUS: IN STOCK

DANA SPICER 2-2-349

Flange Yoke

Flange Yoke mounts to transmission in place of the old Dodge Detroit Pot Body Style Ball and Trunion Driveshaft.
Use this Flange Yoke on a custom built spline and slip driveshaft to upgrade from the old style original.

Dimensions

A= 3.625 inches - Outside diameter - pilot dimension
1310 Series
- 3.219 inches u-joint cap to cap
- 1.062 inches u-joint cap diameter
Outside snap ring style
B= 2.875 inches - Bolt circle diameter
.380 inches - Bolt hole Diameter
G= 1.375 inches - Center of U-JOINT to Face of mounting flange
Rectangular bolt pattern
- X= 2.190 inches
- Y= 1.840 inches

Dana Spicer 2-2-349 Flange Yoke Replacement for old Dodge Detroit Pot Body Style Ball and Trunion Driveshafts 1310 series 3.625 pilot diameter

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $62.95

DANA SPICER 2-2-349

Flange Yoke

Flange Yoke mounts to transmission in place of the old Dodge Detroit Pot Body Style Ball and Trunion Driveshaft.
Use this Flange Yoke on a custom built spline and slip driveshaft to upgrade from the old style original.

Dimensions

A= 3.625 inches - Outside diameter - pilot dimension
1310 Series
- 3.219 inches u-joint cap to cap
- 1.062 inches u-joint cap diameter
Outside snap ring style
B= 2.875 inches - Bolt circle diameter
.380 inches - Bolt hole Diameter
G= 1.375 inches - Center of U-JOINT to Face of mounting flange
Rectangular bolt pattern
- X= 2.190 inches
- Y= 1.840 inches

Denny's Driveshafts Flange Yoke Dimension Diagram

Dana Spicer 2-2-349 Flange Yoke Replacement for old Dodge Detroit Pot Body Style Ball and Trunion Driveshafts 1310 series 3.625 pilot diameter
