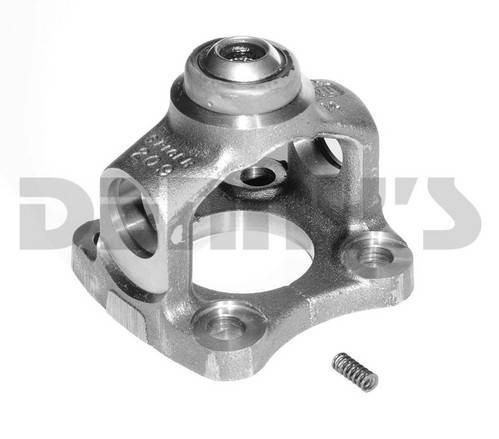

DANA SPICER 211229X NON Greaseable Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft

Part Number:
211229X

UPC:

023913229740

Your Cost $339.24

STATUS: FACTORY DIRECT - SPECIAL ORDER

Dana Spicer 211229X

FLAT FLANGE Style CV Centering Yoke...NON Greaseable
1310 Series
Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
- 2 inch Pilot
- 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
- Center ball socket fits 1/2 inch stud yoke
- New spring Included
DOES NOT FIt Jeep Rubicon

Use on Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke.
DOES NOT FIt Jeep Rubicon

DANA SPICER 211229X NON Greaseable Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT - SPECIAL ORDER

YOUR COST: $339.24

>>>>> SPECIAL ORDER PART: This part number is a special order. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Dana Spicer 211229X

FLAT FLANGE Style CV Centering Yoke...NON Greaseable
1310 Series
Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
- 2 inch Pilot
- 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
- Center ball socket fits 1/2 inch stud yoke
- New spring Included
DOES NOT FIt Jeep Rubicon
Use on Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke

Centering Yoke Fits 1310 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.219 inches) 3 7/32 inches
- Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

Flange Yokes - CV Flange Yoke	Model/Part #: 211229X
A.) Flange or Swing Dia.	4.500
B) Bolt Circle Dia.	3.500
Bolt Hole Dia. (NOM)	.500-D
Number of Bolt Holes	4
C) Pilot Dia. M=male F=female	2.000-F
G) Flange Face to C/L	1.625

DANA SPICER 211229X NON Greaseable Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
