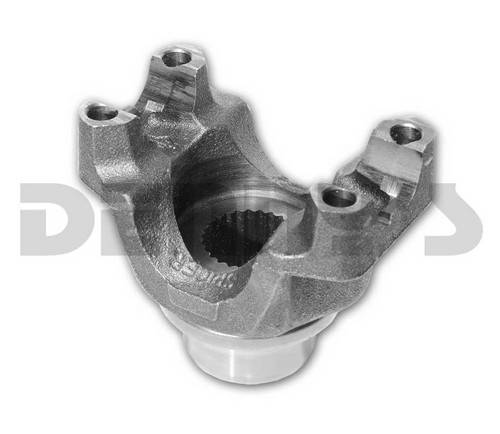

DANA SPICER 2-4-8091X - Dana 44 Pinion Yoke 1310 series 26 spline fits 1969 to 1980 Chevy K5, K10, K20 K30

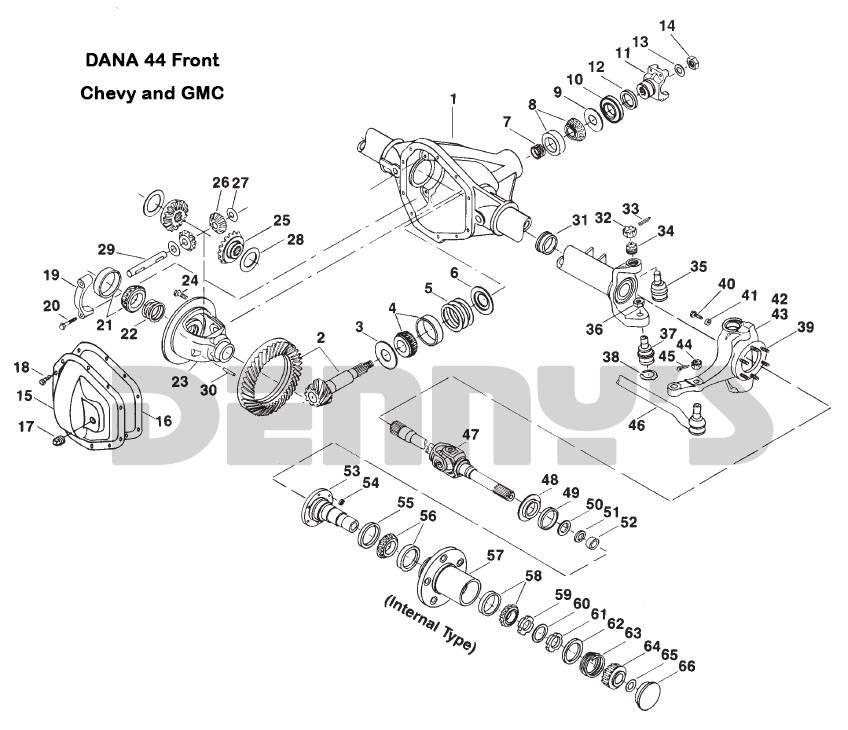

Diagram Number: 11

2-4-8091X
DANA SPICER 2-4-8091X

Dana 44 26 spline 1310 series ...U-Bolt style

Pricing: $59.95

Customize Your Item

- -
 * required
Qty:

Description

DANA SPICER 2-4-8091X

Dana 44 26 spline 1310 series ...U-Bolt Style

Fits CHEVY and GMC 1969 to 1980 with DANA 44 Front End

  • U-Bolt Set Sold Separately
  • Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
  • 26 splines
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.500
  • R = 1.552
  • S = 3.000

Details

  • 2-4-8091X
  • 2-4-8091X
  • Spicer
  • 11
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 2.1 lbs.
  • W6.0000” x H5.0000” x L5.0000”
