CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head

Part Number:
CV913-2

UPC:

Your Cost $142.95

STATUS: IN STOCK - FREE SHIPPING

FRONT DRIVESHAFT CV Rebuild Kit ... NON Greaseable CV BALL Socket

Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
- RAM 1500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
- RAM 2500 and RAM 3500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD

DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1 3/16 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

IMPORTANT: YOU MUST MEASURE....to order the correct parts

YOU NEED TO KNOW if you have 1.062 (1-1/16) or 1.187 (1-3/16) bearing caps in your double cardan on your front driveshaft

IF YOU HAVE 1.062 (1-1/16) inch bearing caps then this is the correct part for your Ram Front Driveshaft
IF YOU HAVE 1.187 (1-3/16) inch bearing caps then you are on the wrong page....CLICK HERE

Denny's CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $142.95

FRONT DRIVESHAFT CV Rebuild Kit ... NON Greaseable CV BALL Socket

Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
- RAM 1500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
- RAM 2500 and RAM 3500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD

DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1.187 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

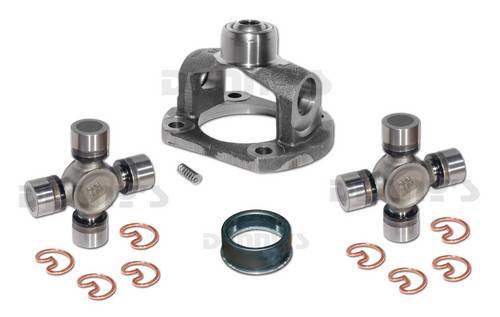

INCLUDES: Everything you need to Rebuild the 1330 Series SPICER Double Cardan CV

(1) DANA SPICER 211913X Non Greaseable 1330 Series Double Cardan CV Flange Yoke with New Spring included
- Center Needle Bearing Ball Socket fits 1/2 inch stud yoke
- Bolt Pattern of flange.... 4.25 inches measured diagonally
- Pilot Diameter of flange... 3.125 inches (3 1/8 inches)
(2) DANA SPICER 5-1330X NON Greaseable U-Joints
- Bearing Cap Diameter = 1.062
- U-Joint Width = 3.625 inches
- Outside Snap Rings
(1) DANA SPICER 2-86-418 Rubber Boot

It is recommended that you install a new rubber boot every time you service the Non Greaseable Double Cardan CV joint.

Denny's CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head
