Dana Spicer 211913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange

Part Number:
211913X

UPC:

023913229252

Your Cost $95.95

STATUS: IN STOCK

DANA SPICER 211913X

FRONT DRIVESHAFT CV FLANGE YOKE ... NON Greaseable CV BALL Socket

Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
- RAM 1500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
- RAM 2500 and RAM 3500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD

DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1 3/16 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

IMPORTANT: YOU MUST MEASURE....to order the correct parts

YOU NEED TO KNOW if you have 1.062 (1-1/16) or 1.187 (1-3/16) bearing caps in your double cardan on your front driveshaft

IF YOU HAVE 1.062 (1-1/16) inch bearing caps then this is the correct part for your 2003 to 2009 Ram Front Driveshaft
IF YOU HAVE 1.187 (1-3/16) inch bearing caps then you are on the wrong page....CLICK HERE

Dana Spicer 211913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange

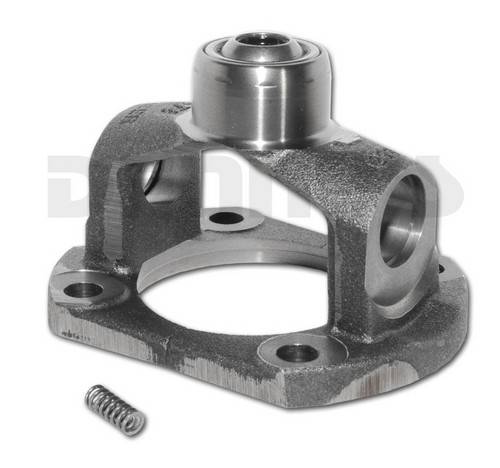

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.95

DANA SPICER 211913X

FRONT DRIVESHAFT CV FLANGE YOKE ... NON Greaseable CV BALL Socket

Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
- RAM 1500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
- RAM 2500 and RAM 3500
  - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD

DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1.187 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

DANA SPICER 211913X Non Greaseable 1330 Series Double Cardan CV Flange Yoke with New Spring included
- Center Needle Bearing Ball Socket fits 1/2 inch stud yoke
- Bolt Pattern of flange.... 4.25 inches measured diagonally
- Pilot Diameter of flange... 3.125 inches (3 1/8 inches)

It is recommended that you install a new rubber boot every time you service the Non Greaseable Double Cardan CV joint.

Dana Spicer 211913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange
Click Here to Enlarge	Click Here to Enlarge
