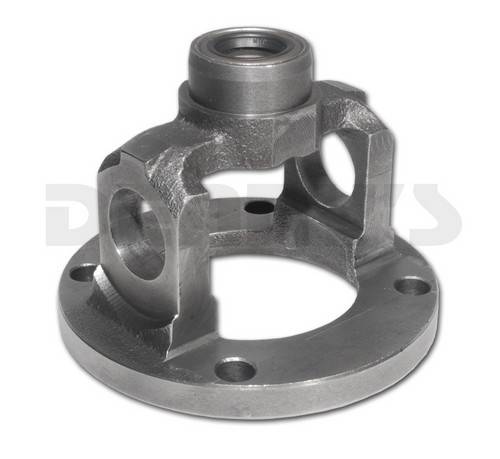

NEAPCO N3R-83-482 Double Cardan CV Flange Yoke fits Buick Lesabre and Electra 225 with 3R series CV Driveshaft
Part Number:
N3R-83-482


UPC:
083869000039
Your Cost $96.95
STATUS:  IN STOCK

NEAPCO N3R-83-482

GM 3R series Double Cardan CV Flange Yoke

  • Fits Buick LeSabre with 3R series double cardan CV driveshaft
  • Fits Buick Electra 225 with 3R series double cardan CV driveshaft

Dimensions

  • Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
  • Pilot Diameter = 3.125 inches (3 1/8 inches)
  • 4 bolt holes equally spaced 3 inches center to center
  • Requires Inside "C" Clip style 3R Series u-joints listed below
    • 2.562 inches span between flat surfaces where "C" Clips lock in
  • Centering ball socket comes fully assembled and ready to install




Neapco
NEAPCO N3R-83-482 Double Cardan CV Flange Yoke fits Buick Lesabre and Electra 225 with 3R series CV Driveshaft
NEAPCO N3R-83-482 Double Cardan CV Flange Yoke fits Buick Lesabre and Electra 225 with 3R series CV Driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $96.95

NEAPCO N3R-83-482

GM 3R series Double Cardan CV Flange Yoke

  • Fits Buick LeSabre with 3R series double cardan CV driveshaft
  • Fits Buick Electra 225 with 3R series double cardan CV driveshaft

Dimensions

  • Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
  • Pilot Diameter = 3.125 inches (3 1/8 inches)
  • 4 bolt holes equally spaced 3 inches center to center
  • Requires Inside "C" Clip style 3R Series u-joints listed below
    • 2.562 inches span between flat surfaces where "C" Clips lock in
  • Centering ball socket comes fully assembled and ready to install





NEAPCO N3R-83-482 Double Cardan CV Flange Yoke fits Buick Lesabre and Electra 225 with 3R series CV Driveshaft

NEAPCO N3R-83-482 Double Cardan CV Flange Yoke fits Buick Lesabre and Electra 225 with 3R series CV Driveshaft

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.
You May Also Need These Parts to Complete the Job
4289-716 Set of 4 grade 8 CV Flange Bolts 7/16 - 14 coarse thread and 4 lock washers
$5.95
Dana Spicer 5-3147X greaseable universal joint fits Buick 1961 to 1996 with INSIDE CLIPS
$19.25
Dana Spicer 5-795X BUICK UNIVERSAL JOINT ALL MODELS 1961 to 1996 with INSIDE CLIPS - SPICER MAINTENANCE FREE
$27.95
BUICK Double Cardan CV "H" Yoke for 3R series CV Driveshaft for inside "C" clip u-joints
$63.95
