Driveshaft and Driveline Parts > WELD YOKES - TUBE YOKES - STEEL > 1310 Series > 2.75 inch Tube Outside Diameter

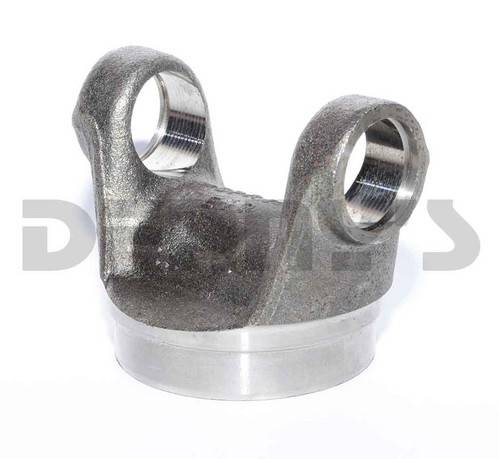

DANA SPICER 2-28-307 Weld Yoke 1310 Series to fit 2.75 inch .065 wall tube

Part Number:
2-28-307

UPC:

023913230319

Your Cost $27.95

STATUS: IN STOCK

DANA SPICER 2-28-307

1310 Series Weld Yoke

Spicer

DANA SPICER 2-28-307 Weld Yoke 1310 Series to fit 2.75 inch .065 wall tube

DANA SPICER 2-28-307 Weld Yoke 1310 Series to fit 2.75 inch .065 wall tube

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $27.95

DANA SPICER 2-28-307

1310 Series Weld Yoke

Fits 2.75 inch OD X .065 wall tubing
- F - Butt Diameter = 2.631
Series = 1310
Lock up style = OUTSIDE SNAP RING
E - Universal Joint Width = 3.219
D - Universal Joint Bore = 1.062
H - Center of u-joint bore to point of weld = 1.688
Special Notes: USE KIT 5-153X, 5-1310X

CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

image/jpeg

DANA SPICER 2-28-307 Weld Yoke 1310 Series to fit 2.75 inch .065 wall tube

DANA SPICER 2-28-307 Weld Yoke 1310 Series to fit 2.75 inch .065 wall tube

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.75	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $27.09
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $20.25	SPICER 5-1201X Universal Joint...Fits FORD with 1.125 cap on 8 inch or 9 inch rear Part#: 5-1201X $32.95
Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint Part#: 5-7439X $26.95
