NEAPCO N2-3-7981KX Driveshaft Slip Yoke 1310 series 16 spline 6.0 inch

Part Number:
N2-3-7981KX

UPC:

083869015095

Your Cost $78.95

STATUS: IN STOCK

NEAPCO N2-3-7981KX

1310 series Slip Yoke

Fits Jeep Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1310 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.375 inches
16 splines and 1.375 inch Spline Diameter
6.0 inches from center of u-joint bearing cap to end of yoke with seal removed.

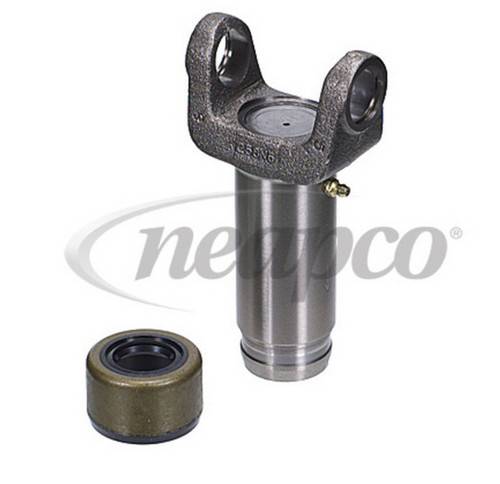

Neapco N2-3-7981KX Driveshaft Slip Yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $78.95

NEAPCO N2-3-7981KX

1310 series Slip Yoke

Fits Jeep Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1310 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.375 inches

Designed for 1310 series u-joint. See bottom of this page for 1310 series u-joints

3 7/32 inches between snap rings
1 1/16 diameter bearing caps

16 splines and 1.375 inch Spline Diameter

Fits 16 spline driveshaft with 1.375 spline Diameter
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
Includes press on seal
6.0 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed

Neapco N2-3-7981KX Driveshaft Slip Yoke

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $15.76
