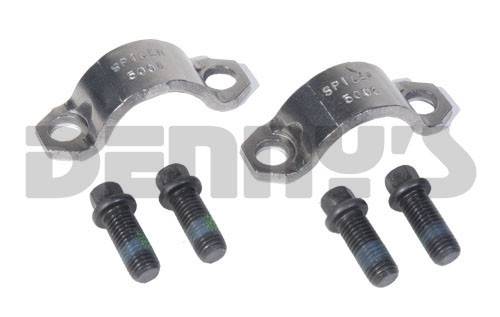

STOCK 3R SERIES PINION YOKE

DANA SPICER 3-70-28X Strap & Bolt Set 1350 SERIES

Part Number:
3-70-28X

UPC:

023913123086

Your Cost $7.95

STATUS: IN STOCK

DANA SPICER 3-70-28X

Strap and Bolt Set for Dana 1350 Series pinion yoke.

Comes with 2 straps and 4 bolts.
Use on DANA 1350 series pinion yokes and transfer case yokes
FITS BEARING CAP = 1 3/16 (1.187) inches
CL to CL = 1.806 inches
THREAD = 5/16 - 24 (.312 - 24)
BOLT LENGTH = .750
RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number

Same as Neapco 1-0019

DANA SPICER 3-70-28X Strap & Bolt Set 1350 SERIES

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $7.95

DANA SPICER 3-70-28X

Strap and Bolt Set for Dana 1350 Series pinion yoke.

Comes with 2 straps and 4 bolts.
Use on DANA 1350 series pinion yokes and transfer case yokes
FITS BEARING CAP = 1 3/16 (1.187) inches
CL to CL = 1.806 inches
THREAD = 5/16 - 24 (.312 - 24)
BOLT LENGTH = .750
RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number

Same as Neapco 1-0019

DANA SPICER 3-70-28X Strap & Bolt Set 1350 SERIES

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G $27.95	Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95
Dana Spicer 3-4-8681-1 Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline Part#: 3-4-8681-1 $175.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.

[ X ]

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188

$27.95

Dana Spicer 5-178X Greaseable u-joint 1350 Series

$20.95

Dana Spicer 3-4-8681-1 Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline

$175.95

Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals

$23.54
