AAM 40019801 SERRATED FLANGE YOKE 1344/3R Series fits 2.556 x 1.125 inside clip u-joint on Front Diff end of Front CV Driveshaft 2003 to 2009 DODGE Ram 2500

Part Number:
40019801

UPC:

Your Cost $77.95

STATUS: IN STOCK

AAM Part Number 40019801

SERRATED FLANGE YOKE 1344/3R Series

Fits DODGE Ram 2500
- 2003, 2004, 2005, 2006, 2007, 2008, 2009

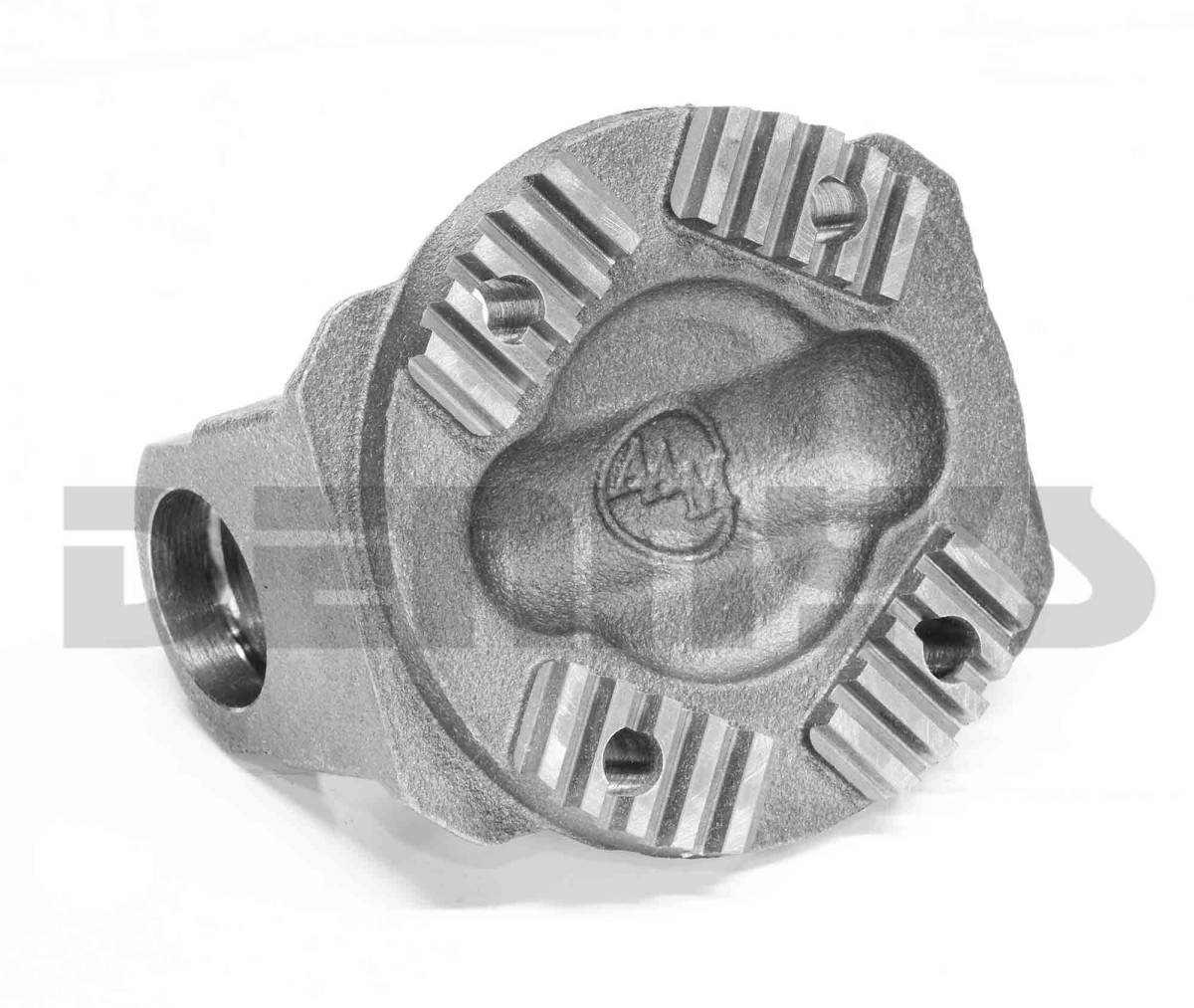

- Fits Serrated (finned) mounting flange on AAM 9.25 inch Front Diff
- Fits 1344/3R series Slip Yoke on FRONT CV DRIVESHAFT
- Fits 1344/3R series u-joint 1.125 inch cap diameter....see u-joint at bottom page
- Fits 1344/3R series u-joint 2.556 inches between yoke inner surfaces where "C" clip locks u-joint in place
74089801
DOES NOT FIT 2006 - 2009 Ram 2500, 3500 diesel with 1355 Series SLIP YOKE on Front CV Driveshaft

NOTE: See 40038359 for 1355 Series serrated flange yoke for 2006, 2007, 2008, 2009 Ram 2500, 3500 diesel Front CV Driveshaft

Part number 40038359 is 1355 series and has 1.188 inch diameter u-joint caps

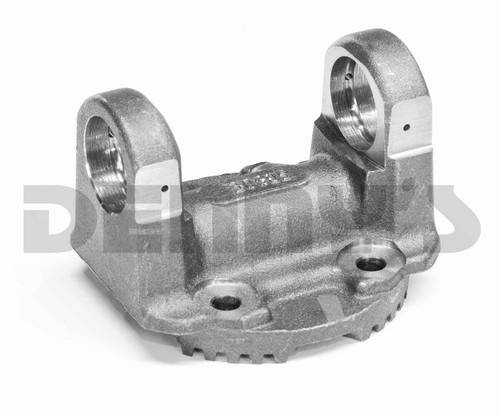

AAM 40019801 SERRATED FLANGE YOKE 1344/3R Series fits 2.556 x 1.125 inside clip u-joint on Front Diff end of Front CV Driveshaft 2003 to 2009 DODGE Ram 2500

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $77.95

AAM Part Number 40019801

SERRATED FLANGE YOKE 1344/3R Series

Fits DODGE Ram 2500
- 2003, 2004, 2005, 2006, 2007, 2008, 2009
- Fits Serrated (finned) mounting flange on AAM 9.25 inch Front Diff
- Fits 1344/3R series Slip Yoke on FRONT CV DRIVESHAFT
- Fits 1344/3R series u-joint 1.125 inch cap diameter....see u-joint at bottom page
- Fits 1344/3R series u-joint 2.556 inches between yoke inner surfaces where "C" clip locks u-joint in place
74089801
DOES NOT FIT 2006 - 2009 Ram 2500, 3500 diesel with 1355 Series SLIP YOKE on Front CV Driveshaft

NOTE: See 40038359 for 1355 Series serrated flange yoke for 2006, 2007, 2008, 2009 Ram 2500, 3500 diesel Front CV Driveshaft

Part number 40038359 is 1355 series and has 1.188 inch diameter u-joint caps

AAM 40019801 SERRATED FLANGE YOKE 1344/3R Series fits 2.556 x 1.125 inside clip u-joint on Front Diff end of Front CV Driveshaft 2003 to 2009 DODGE Ram 2500
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

SPICER 5-3147X 3R Series U-joint Greaseable
Part#: 5-3147X

$19.25

Dana Spicer 5-795X Universal Joint 3R Series Non greaseable
Part#: 5-795X

$27.95
