1.250 Inch Diameter - 16 SPLINE

DANA SPICER 2-3-8841KX - Slip Yoke 1310 series 16 spline 6.562 inches with PRESS ON SEAL

Part Number:
2-3-8841KX

UPC:

Your Cost $73.65

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 2-3-8841KX

1310 series Slip Yoke with PRESS ON SEAL....Grease fitting in seal

Fits Jeep FRONT with 1 1/4 inch tube diameter Spline and Slip Style Driveshaft

16 splines and 1.250 inch Spline Diameter
6.562 inches from center of u-joint bearing cap to end of yoke with seal removed.

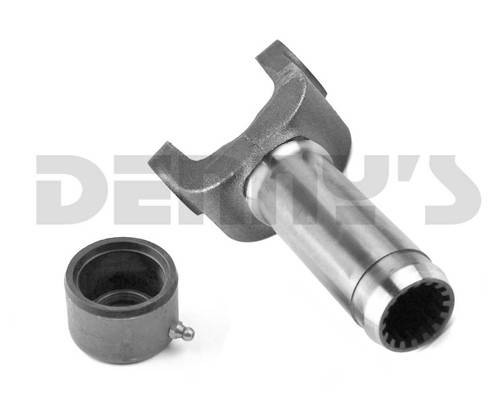

DANA SPICER 2-3-8841KX - Slip Yoke 1310 series 16 spline 6.562 inches with PRESS ON SEAL

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $73.65

DANA SPICER 2-3-8841KX

1310 series Slip Yoke with PRESS ON SEAL....Grease fitting in seal

Designed for 1310 series u-joint. See bottom of this page for 1310 series u-joints

3 7/32 inches between snap rings
1 1/16 diameter bearing caps

Fits 16 spline driveshaft with 1.250 spline Diameter ....
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
Includes PRESS ON seal
6.562 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed

DANA SPICER 2-3-8841KX - Slip Yoke 1310 series 16 spline 6.562 inches with PRESS ON SEAL

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	DANA SPICER 2-40-1771 SPLINE 6.125 inches Fits 1.25 inch .120 wall tube Part#: 2-40-1771 ~~$75.07~~ $63.95
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $16.59
