DANA SPICER 3-3-5631X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 7.75 inches long

Part Number:
3-3-5631X

UPC:

023913231491

Your Cost ~~$137.17~~ Sale Price $129.95

You Save $7.22

Sorry, sold out

STATUS: OBSOLETE - NO LONGER AVAILABLE

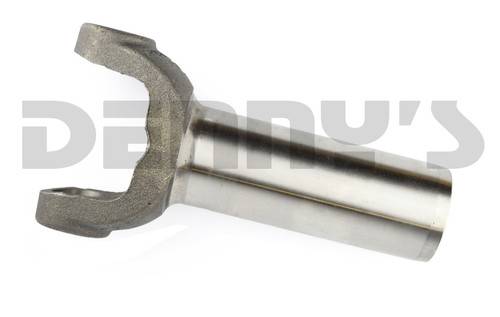

DANA SPICER 3-3-5631X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DIMENSIONS

Spline/Hole Outside Diameter = 1.615
Number of Splines = 30/31
Series = 1410
Lock up style = OUTSIDE Snap Ring
Universal Joint Width = 4.187
D - Universal Joint Bore = 1.187
J - Center of u-joint bore to End of Slip yoke = 7.750
R - Barrel Outside Diameter = 2.200
Special Notes: verify oem number...should be 4882170

DANA SPICER 3-3-5631X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 7.75 inches long

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: OBSOLETE - NO LONGER AVAILABLE

YOUR COST: ~~$137.17~~ Sale Price $129.95

You Save $7.22

DANA SPICER 3-3-5631X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DIMENSIONS

Spline/Hole Outside Diameter = 1.615
Number of Splines = 30/31
Series = 1410
Lock up style = OUTSIDE Snap Ring
Universal Joint Width = 4.187
D - Universal Joint Bore = 1.187
J - Center of u-joint bore to End of Slip yoke = 7.750
R - Barrel Outside Diameter = 2.200
Special Notes: verify oem number...should be 4882170

DANA SPICER 3-3-5631X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 7.75 inches long
