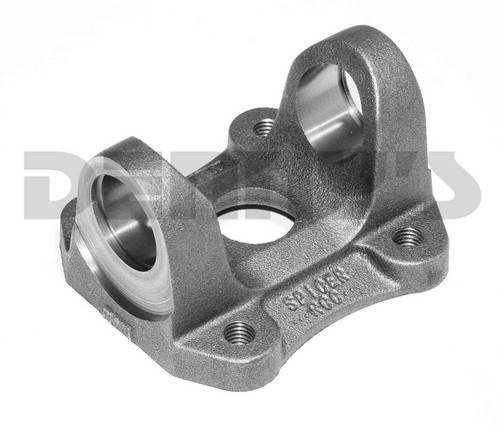

DANA SPICER 3-2-1719 Flange Yoke 1480 Series Threaded Mounting Holes 2.680 female pilot
Part Number:
3-2-1719


UPC:
023913217778
Your Cost $58.55 Sale Price $53.95
You Save $4.60
STATUS:  IN STOCK

DANA SPICER 3-2-1719

1480 Series Flange Yoke




Spicer
DANA SPICER 3-2-1719 Flange Yoke 1480 Series Threaded Mounting Holes 2.680 female pilot
DANA SPICER 3-2-1719 Flange Yoke 1480 Series Threaded Mounting Holes 2.680 female pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $58.55 Sale Price $53.95
You Save $4.60

DANA SPICER 3-2-1719

1480 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.875 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = .472 inches
    • Bolt Holes = 4
    • Bolt Holes = THREADED
  • C - Center Pilot Hole Diameter = 2.680 inches
    • Center Pilot = FEMALE
  • Series = 1480
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.375 inches
  • G - Center of u-joint bore to Face of flange = 1.800 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: 12mm threaded holes equally spaced
  • Ford OEM Number F81Z-4865-DA
