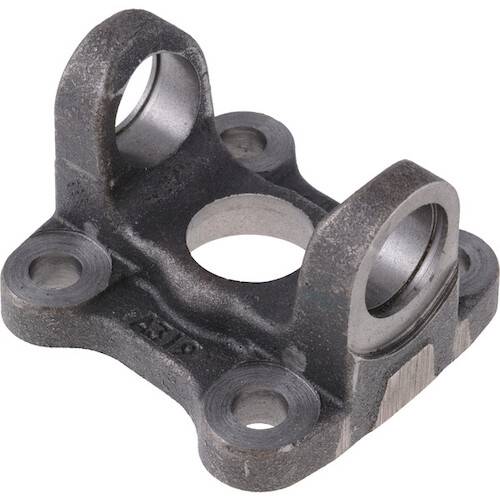

DANA SPICER 2-2-939 Flange Yoke 1310 Series 3.5 inch bolt circle 2 inch pilot
Part Number:
2-2-939


UPC:
023913232313
Your Cost $31.95
STATUS:  IN STOCK

DANA SPICER 2-2-939

1310 Series Flange Yoke

3.5 inch bolt circle 2 inch pilot




Spicer
DANA SPICER 2-2-939 Flange Yoke 1310 Series 3.5 inch bolt circle 2 inch pilot
DANA SPICER 2-2-939 Flange Yoke 1310 Series 3.5 inch bolt circle 2 inch pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $31.95

DANA SPICER 2-2-939

1310Series Flange Yoke

  • A - Flange or Swing Diameter = 4.500 inches
  • B - Bolt Circle Diameter = 3.500 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.650 inches
  • X - 2.500 inches
  • Y - 2.500 inches
  • Special Notes: BOLT HOLES EQUALLY SPACED. PART HAS HOLE THRU CENTER. FITS FORD CAR AND LIGHT TRUCK APPLICATIONS





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-939 Flange Yoke 1310 Series 3.5 inch bolt circle 2 inch pilot

DANA SPICER 2-2-939 Flange Yoke 1310 Series 3.5 inch bolt circle 2 inch pilot
