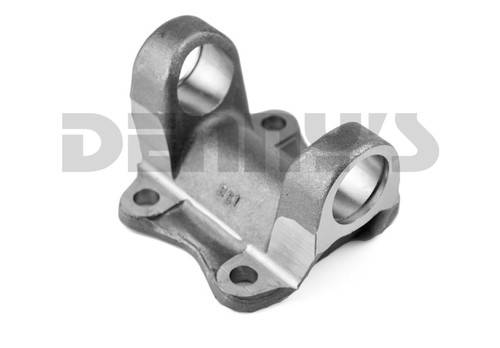

DANA SPICER 3-2-439 Flange Yoke 1410 Series
Part Number:
3-2-439


UPC:
023913232429
Your Cost $107.89 Sale Price $90.89
You Save $17.00
STATUS:  FACTORY DIRECT TO YOU

DANA SPICER 3-2-439

1410 Series Flange Yoke




Spicer
DANA SPICER 3-2-439 Flange Yoke 1410 Series
DANA SPICER 3-2-439 Flange Yoke 1410 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $107.89 Sale Price $90.89
You Save $17.00

DANA SPICER 3-2-439

1410 Series Flange Yoke

  • A - Flange or Swing Diameter = 4.625 inches
  • B - Bolt Circle Diameter = 3.750 inches
    • Bolt Hole Diameter = 0.438 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.750 inches
    • Center Pilot = MALE
  • Series = 1410
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.938 inches
  • X - inches
  • Y - inches
  • Special Notes:





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-439 Flange Yoke 1410 Series

DANA SPICER 3-2-439 Flange Yoke 1410 Series
