DANA SPICER 100-2-169-1 Flange Yoke SPL100 Series
|
|
Your Cost
$160.95
Sorry, sold out
STATUS:
FACTORY BACK ORDER at this time
|
|
DANA SPICER 100-2-169-1
SPL100 Series Flange Yoke
UPC: 023913265854
Part Number: 100-2-169-1
|
DANA SPICER 100-2-169-1 Flange Yoke SPL100 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY BACK ORDER at this time
YOUR COST:
$160.95
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 100-2-169-1
SPL100 Series Flange Yoke

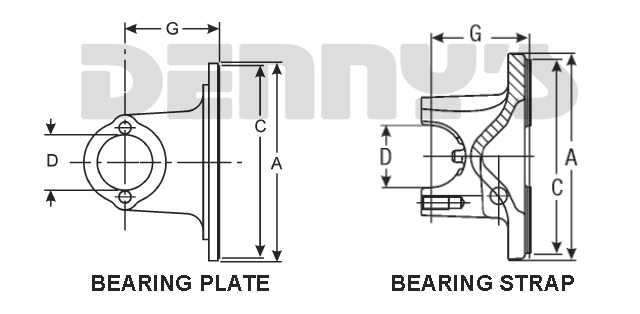

- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.375 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 6.438 inches
- Series = SPL100
- U-Joint Width = 5.380 inches
- D - U-Joint Bearing cap diameter = 1.625 inches
- G - Center of u-joint bore to Face of flange = 2.750 inches
- Special Notes:
|
|
DANA SPICER 100-2-169-1 Flange Yoke SPL100 Series
|
|
