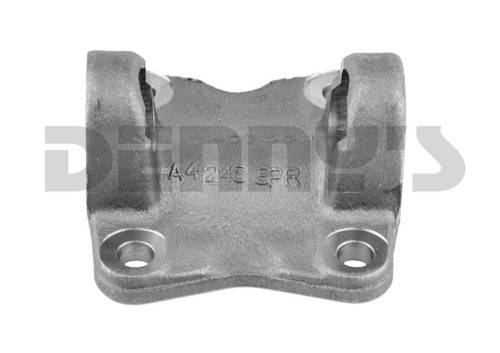

DANA SPICER 3-2-559 Flange Yoke 1410 Series
|
|
Your Cost
$319.95
STATUS:
FACTORY DIRECT - SPECIAL ORDER
|
|
DANA SPICER 3-2-559
1410 Series Flange Yoke
UPC: 023913236786
Part Number: 3-2-559
|
DANA SPICER 3-2-559 Flange Yoke 1410 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT - SPECIAL ORDER
YOUR COST:
$319.95
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 3-2-559
1410 Series Flange Yoke
- A - Flange or Swing Diameter = 5.875 inches
- B - Bolt Circle Diameter = 4.750 inches
- Bolt Hole Diameter = 0.500 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 3.750 inches
- Series = 1410
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.187 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
- G - Center of u-joint bore to Face of flange = 1.500 inches
- X - inches
- Y - inches
- Special Notes:
|
|
DANA SPICER 3-2-559 Flange Yoke 1410 Series
|
|
