DANA SPICER 5-2-619 Flange Yoke 1610 Series Bearing Plate Style
Part Number:
5-2-619


UPC:
Your Cost $228.48 Sale Price $225.11
You Save $3.37
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 5-2-619

1610 Series Flange Yoke




Spicer
DANA SPICER 5-2-619 Flange Yoke 1610 Series Bearing Plate Style
DANA SPICER 5-2-619 Flange Yoke 1610 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $228.48 Sale Price $225.11
You Save $3.37

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 5-2-619

1610 Series Flange Yoke

  • A - Flange or Swing Diameter = 8 inches
  • B - Bolt Circle Diameter = 7.250 inches
    • Bolt Hole Diameter = 0.375 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 7.750 inches
    • Center Pilot = MALE
  • Series = 1610
    • U-Joint Width = 5.312 inches
    • D - U-Joint Bearing cap diameter = 1.875 inches
  • G - Center of u-joint bore to Face of flange = 1.875 inches
  • Special Notes: Part has opening cast thru web, Bearing Plate Style





Heavy duty truck and equipment driveshaft flange yokes at Denny's Driveshafts

DANA SPICER 5-2-619 Flange Yoke 1610 Series Bearing Plate Style

DANA SPICER 5-2-619 Flange Yoke 1610 Series

You May Also Need These Parts to Complete the Job

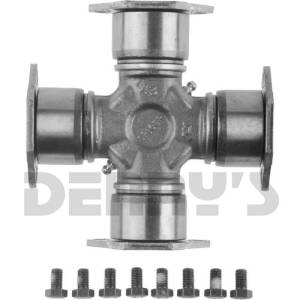

DANA SPICER 5-279X Universal joint 1610 Series Bearing Plate Style
$67.95
