DANA SPICER 6.5-2-349 Flange Yoke 1810 Series
|
|
Your Cost
$166.34
Sorry, sold out
STATUS:
Discontinued Item...See other choices listed
|
|
DANA SPICER 6.5-2-349
1810 Series Flange Yoke
THIS PART IS OBSOLETE AND NO LONGER AVAILABLE
UPC:
Part Number: 6.5-2-349
|

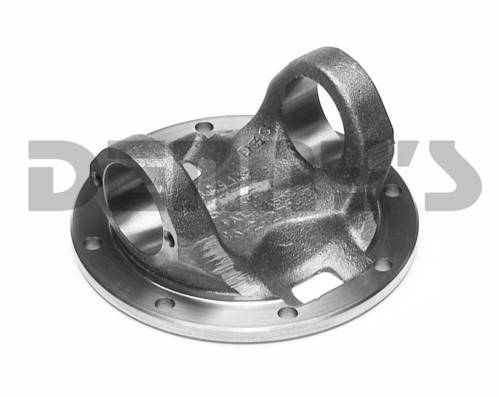

GENERIC PHOTO
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: Discontinued Item...See other choices listed
YOUR COST:
$166.34
|
DANA SPICER 6.5-2-349
1810 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.438 inches
- Bolt Holes = 12
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 6.438 inches
- Series = 1810
- U-Joint Width = 7.547 inches
- D - U-Joint Bearing cap diameter = 1.938 inches
- G - Center of u-joint bore to Face of flange = 3.312 inches
- Special Notes:
|
|
GENERIC PHOTO
|
|
