DANA SPICER 90-2-39-1 Flange Yoke SPL90 Series
|
|
Your Cost
$289.95
STATUS:
FACTORY DIRECT - SPECIAL ORDER
|
|
DANA SPICER 90-2-39-1
SPL90 Series Flange Yoke
UPC: 023913247621
Part Number: 90-2-39-1
|
DANA SPICER 90-2-39-1 Flange Yoke SPL90 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT - SPECIAL ORDER
YOUR COST:
$289.95
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|

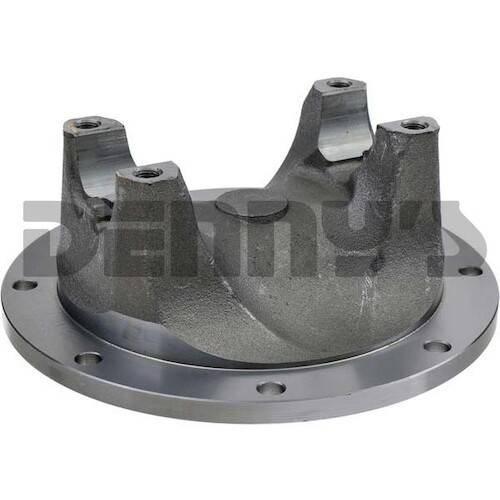

DANA SPICER 90-2-39-1
SPL90 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.375 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 6.438 inches
- Series = SPL90
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.957 inches
- D - U-Joint Bearing cap diameter = 1.625 inches
- G - Center of u-joint bore to Face of flange = 2.750 inches
- Special Notes: B.S./H.R.style w/brake pilot.
|
|
DANA SPICER 90-2-39-1 Flange Yoke SPL90 Series
|
|
