Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

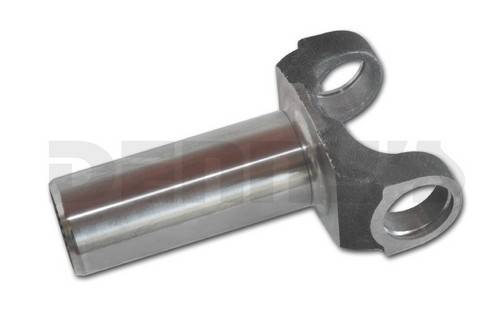

Dana Spicer 2-3-1331X Transmission Slip yoke 16 spline for 1955 to 1964 Chevy Powerglide Transmission 1310 Series
Part Number:
2-3-1331X


UPC:
023913235796
Your Cost $448.39 Sale Price $345.95
You Save $102.44
STATUS:  IN STOCK - FREE SHIPPING

Dana Spicer 2-3-1331X

  • Transmission Slip Yoke
    • 16 spline for early Powerglide Transmission - GM Chevy Chevrolet
      • 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
    • 1310 Series fits 5-153X U-Joint 3-7/32 x 1.062

Dimensions

  • Length to center of u-joint... Dimension #1 = 4.875 inches
  • Barrel Diameter... Dimension #2 = 1.500 inches
  • Barrel Length... Dimension #3 = 3.625 inches
  • U-joint cap diameter... Dimension #4 = 1.062 inches
  • U-joint width... Dimension #5 = 3.219 inches
  • Lock up style = OUTSIDE SNAP RING
  • Series... 1310
  • Spline count... 16
  • Spline Outside Diameter = 1.172
Spicer
Dana Spicer 2-3-1331X Transmission Slip yoke 16 spline for 1955 to 1964 Chevy Powerglide Transmission 1310 Series
Dana Spicer 2-3-1331X Transmission Slip yoke 16 spline for 1955 to 1964 Chevy Powerglide Transmission 1310 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $448.39 Sale Price $345.95
You Save $102.44

Dana Spicer 2-3-1331X

  • Transmission Slip Yoke
    • 16 spline for early Powerglide Transmission - GM Chevy Chevrolet
      • 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
    • 1310 Series fits 5-153X U-Joint 3-7/32 x 1.062

Dimensions

  • Length to center of u-joint... Dimension #1 = 4.875 inches
  • Barrel Diameter... Dimension #2 = 1.500 inches
  • Barrel Length... Dimension #3 = 3.625 inches
  • U-joint cap diameter... Dimension #4 = 1.062 inches
  • U-joint width... Dimension #5 = 3.219 inches
  • Lock up style = OUTSIDE SNAP RING
  • Series... 1310
  • Spline count... 16
  • Spline Outside Diameter = 1.172
