DANA SPICER 3-3-4391X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING

Part Number:
3-3-4391X

UPC:

023913229856

Your Cost $123.95

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 3-3-4391X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DIMENSIONS

1410 Series
Length to center of u-joint... Dimension #1 = 8.34 inches
Barrel Diameter... Dimension #2 = 2.20 inches
Barrel Length... Dimension #3 = 6 5/16 inches
U-joint cap diameter... Dimension #4 = 1 3/16 inches
U-joint width... Dimension #5 = 4 3/16 inches
Series... 1410
Spline count... 30/31
Spline OD 1.615 inches

DANA SPICER 3-3-4391X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING

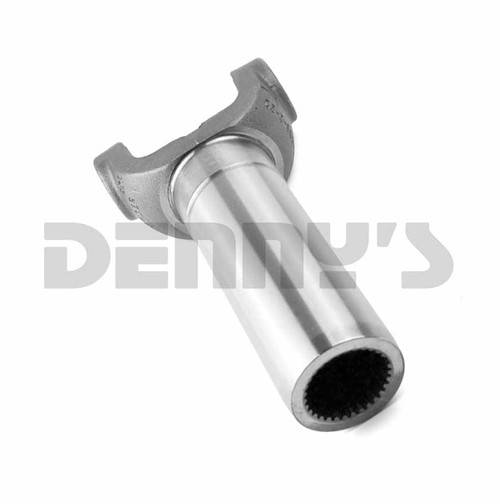

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $123.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 3-3-4391X

SLIP YOKE 1410 series

Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
- Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
- You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

DIMENSIONS

1410 Series
Length to center of u-joint... Dimension #1 = 8.34 inches
Barrel Diameter... Dimension #2 = 2.20 inches
Barrel Length... Dimension #3 = 6 5/16 inches
U-joint cap diameter... Dimension #4 = 1 3/16 inches
U-joint width... Dimension #5 = 4 3/16 inches
Series... 1410
Spline count... 30/31
Spline OD 1.615 inches

CLICK HERE : For ALL DANA SPICER Slip Yoke Part Numbers, Specifications and Dimensions

DANA SPICER 3-3-4391X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
