AAM 74081485 Universal Joint 1485 series fits DODGE AAM Rear Driveshaft and 9.25 Front Axles

Part Number:
74081485

UPC:

Your Cost $61.95

STATUS: IN STOCK

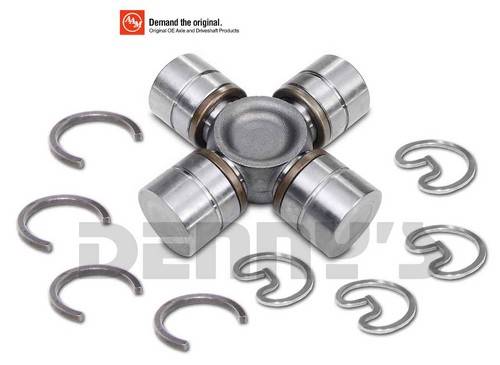

AAM 74081485 UNIVERSAL JOINT

1485 series American Axle Manufacturing U-Joint

Fits 2003 and newer Dodge and GM 1485 series REAR Driveshafts made by AAM American Axle Manufacturing
- Comes with OUTSIDE Snap Rings to be used in 1485 series Driveshafts
- Dimension A & B = 4.178 inches
- Dimension C & D = 1.375 inch diameter
- DOES NOT FIT DANA SPICER 1480 Series DRIVESHAFTS
ALSO Fits Dodge 1485 Series 2003 to 2009 RAM 2500 and RAM 3500 4X4 Front Axle Shafts on AAM 9.25 inch Front Differential
- Comes with INSIDE "C" Clips to be used in 1485 series Front Axles
- All 4 bearing caps are 1.375 inch diameter with inside "C" Clips to lock the cap in place.
- 2.920 inches = The span between the yoke inner surfaces where the "C" Clips lock in.
OE Part Numbers 05127822AB, 5102157AE

AAM 74081485 Universal Joint 1485 series fits DODGE AAM Rear Driveshaft and 9.25 Front Axles

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $61.95

AAM 74081485 UNIVERSAL JOINT

1485 series American Axle Manufacturing U-Joint

Fits 2003 and newer Dodge and GM 1485 series REAR Driveshafts made by AAM American Axle Manufacturing
- Comes with OUTSIDE Snap Rings to be used in 1485 series Driveshafts
- Dimension A & B = 4.178 inches
- Dimension C & D = 1.375 inch diameter
- DOES NOT FIT DANA SPICER 1480 Series DRIVESHAFTS
ALSO Fits Dodge 1485 Series 2003 to 2009 RAM 2500 and RAM 3500 4X4 Front Axle Shafts on AAM 9.25 inch Front Differential
- Comes with INSIDE "C" Clips to be used in 1485 series Front Axles
- All 4 bearing caps are 1.375 inch diameter with inside "C" Clips to lock the cap in place.
- 2.920 inches = The span between the yoke inner surfaces where the "C" Clips lock in.
OE Part Numbers 05127822AB, 5102157AE

<<<<< IMPORTANT ...PLEASE READ THIS >>>>>

AAM Universal Joints have extremely good seals on each cap and it is difficult to compress the caps onto the body all the way using only your hand.

We have included this information because many customers have had concerns that the u-joint appears to be too wide when it is actually the correct width.

When you receive this u-joint you will notice that it appears wider than the posted dimension but if you compress the caps onto the body using a bench vise you will see that it is the correct width dimension.
Once you compress the caps onto the body you will find each cap has locked on and will require extra effort to remove the caps. Please do this carefully so you do not damage the seals or lose any needle bearings.
Compressing the caps is not necessary to install the u-joint into the driveshaft but we have included this information because many customers have had concerns that they do not have the correct part because it appears to be too wide.

AAM 74081485 Universal Joint 1485 series fits DODGE AAM Rear Driveshaft and 9.25 Front Axles
