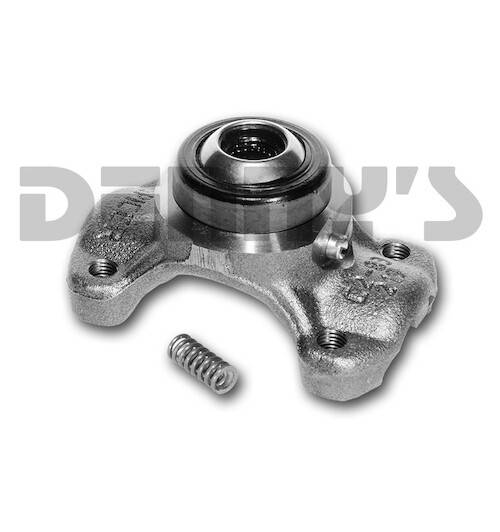

DANA SPICER 211355X Fits 1986 to 1991 Jeep XJ WAGONEER Compact Front CV Driveshaft Centering Yoke 1310 series GREASABLE

Part Number:
211355X

UPC:

023913228972

Your Cost $56.95

STATUS: IN STOCK

DANA SPICER 211355X

1986 to 1991 Jeep XJ WAGONEER Compact Front CV Driveshaft Centering Yoke 1310 series GREASABLE

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X Fits 1986 to 1991 Jeep XJ WAGONEER Compact Front CV Driveshaft Centering Yoke 1310 series GREASABLE

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $56.95

DANA SPICER 211355X

1986 to 1991 Jeep XJ WAGONEER Compact Front CV Driveshaft Centering Yoke 1310 series GREASABLE

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X Fits 1986 to 1991 Jeep XJ WAGONEER Compact Front CV Driveshaft Centering Yoke 1310 series GREASABLE
