6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1978 to 1991 Chevy & GMC 4X4 Front Driveshaft comes with NON GREASABLE U-Joints

Part Number:
6653305CV

UPC:

Your Cost $231.95

STATUS: IN STOCK - FREE SHIPPING

Part Number 6653305CV

3R Series Double Cardan CV Head - with NON Greaseable u-joints

Fits Chevy GMC K5, K10, K15, K20, K25, K30 K35 with 3R series double cardan CV FRONT DRIVESHAFT
- 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Fits S10 and Sonoma with 5 u-joint driveshaft
- 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Fits Chevy Full Size Impala, Biscayne, Caprice with 3 u-joint driveshaft
- 1973, 1974, 1975, 1976, 1977, 1978, 1979
- will also fit 1971, 1972 if driveshaft is rebuildable. Most 1971 and 1972 were not serviceable because the stud yoke was not machined for "C" clips. This will not allow for the u-joint to be installed correctly so you cannot install this unit onto the driveshaft.

This unit is fully assembled and ready to install onto your existing driveshaft. ....all you need to do is install one u-joint into your CV Ball Stud yoke to install this assembly

It's as easy as changing one u-joint. Please be sure to measure the bolt pattern and pilot hole diameter prior to ordering.
Use this to replace the GM 3R series double cardan CV on your Driveshaft

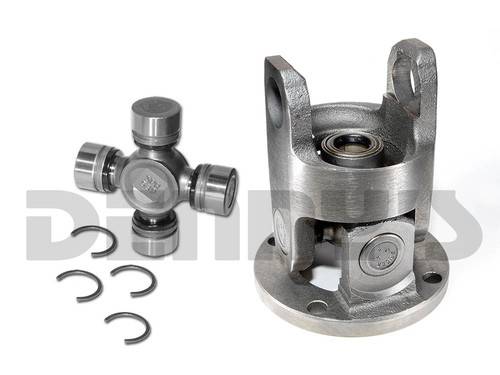

KIT INCLUDES

(2) Spicer 5-795X NON Greaseable 3R Series Universal Joints
(1) NEAPCO N3R-26-057 "H" Yoke
(1) NEAPCO N3R-83-482 CV Flange yoke with ball socket parts installed

DIMENSIONS

Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter = 3.125 inches (3 1/8 inches)
4 bolt holes equally spaced 3 inches center to center
INSIDE "C" Clip style

6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1978 to 1991 Chevy & GMC 4X4 Front Driveshaft comes with NON GREASABLE U-Joints

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $231.95

Part Number 6653305CV

3R Series Double Cardan CV Head - with NON Greaseable u-joints

Fits Chevy GMC K5, K10, K15, K20, K25, K30 K35 with 3R series double cardan CV FRONT DRIVESHAFT
- 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Fits S10 and Sonoma with 5 u-joint driveshaft
- 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Fits Chevy Full Size Impala, Biscayne, Caprice with 3 u-joint driveshaft
- 1973, 1974, 1975, 1976, 1977, 1978, 1979
- will also fit 1971, 1972 if driveshaft is rebuildable. Most 1971 and 1972 were not serviceable because the stud yoke was not machined for "C" clips. This will not allow for the u-joint to be installed correctly so you cannot install this unit onto the driveshaft.

This unit is fully assembled and ready to install onto your existing driveshaft. ....all you need to do is install one u-joint into your CV Ball Stud yoke to install this assembly

It's as easy as changing one u-joint. Please be sure to measure the bolt pattern and pilot hole diameter prior to ordering.
Use this to replace the GM 3R series double cardan CV on your Driveshaft

KIT INCLUDES

(2) Spicer 5-795X NON Greaseable 3R Series Universal Joints
(1) NEAPCO N3R-26-057 "H" Yoke
(1) NEAPCO N3R-83-482 CV Flange yoke with ball socket parts installed

DIMENSIONS

Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter = 3.125 inches (3 1/8 inches)
4 bolt holes equally spaced 3 inches center to center
INSIDE "C" Clip style

6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1978 to 1991 Chevy & GMC 4X4 Front Driveshaft comes with NON GREASABLE U-Joints
