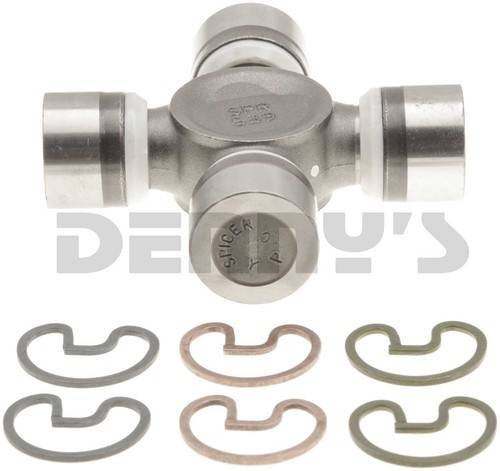

DANA SPICER 5-7438X Universal Joint 1330 Series FORD 1.125 Bearing Caps NON Greaseable
|
|
Your Cost
$28.95
STATUS:
IN STOCK
|
|
DANA SPICER 5-7438X
1330 Series Spicer Maintenance Free NON Greaseable FORD Rear Universal Joint. Strong, high mileage, maintenance free and no grease splatter.
This is the one you want for High Horsepower High Performance and Racing applications
- Fits ALL FORD 1330 (Big Cap) applications that require (2) 1.062 and (2) 1.125 inch diameter bearing caps
UPC: 023913121211
Part Number: 5-7438X
|
DANA SPICER 5-7438X Universal Joint 1330 Series FORD 1.125 Bearing Caps NON Greaseable
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$28.95
|
DANA SPICER 5-7438X
1330 Series Spicer NON Greaseable Universal Joint
Fits ALL FORD 1330 (Big Cap) applications that require (2) 1.062 and (2) 1.125 inch diameter bearing caps
Commonly found on
- Ford Truck manual transmission bolt on yokes
- Ford 4x4 transfer case bolt on yokes
- Ford 4x4 front differential pinion yokes
- Ford car and truck Rear End PINION YOKES
- For use at rear of FORD Mustang driveshaft where 1.125 cap diameter bearing cap is required to fit Ford 8.8 or Ford 9 inch u-bolt style pinion yoke.
- NON GREASEABLE U-Joint....Maintenance Free
DIMENSIONS
- A = 3.625 inches (3 5/8 inches )
- B = 3.625 inches (3 5/8 inches )
- C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
- D = 1.125 inch ( 1 1/8 inch ) diameter to fit pinion yoke
- Outside snap rings
DO NOT use on 1330 driveshaft with 1330 flat flange yoke.
- If you have a 1330 series flat flange yoke on your driveshaft then you will need SPICER 5-1330X
|
|
DANA SPICER 5-7438X Universal Joint 1330 Series FORD 1.125 Bearing Caps NON Greaseable
|
|
