Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front

Part Number:
2002692

UPC:

023913136864

Diagram Number:
41-OUT

Your Cost $105.49

STATUS: IN STOCK

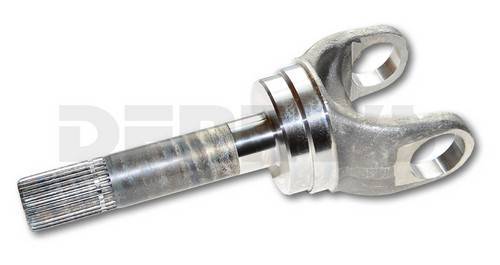

DANA SPICER 2002692

OUTER AXLE SHAFT

Fits FORD SUPER DUTY F-250 and F-350 from 1999, 2000, 2001, 2002 with DANA 50 FRONT
Fits FORD EXCURSION 2000, 2001, 2002, 2003, 2004, 2005 with DANA 50 FRONT

30 SPLINE
FITS 5-806X or SPL55-3X, SPL55-4X UNIVERSAL JOINT
9.31 INCHES Centerline of u-joint to end of yoke

Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $105.49

DANA SPICER 2002692

OUTER AXLE SHAFT

Fits FORD SUPER DUTY F-250 and F-350 with DANA 50 FRONT

1999, 2000, 2001, 2002

Fits FORD EXCURSION with DANA 50 FRONT

2000, 2001, 2002, 2003, 2004, 2005

FITS 5-806X or SPL55-3X NON Greaseable, SPL55-4X Greaseable UNIVERSAL JOINT

B1 = 1.31 inch diameter with 30 splines

B = 9.31 inches Centerline of u-joint to end of yoke
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front

You May Also Need These Parts to Complete the Job

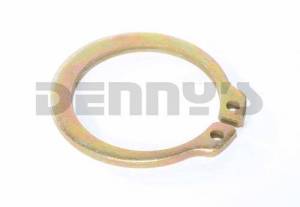

Dana Spicer 620142 Axle Snap Ring for Dana 50 outer axle shaft Part#: 620142 $2.78	DANA SPICER SPL55-3X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint replaces 5-806X Part#: SPL55-3X $55.78
DANA SPICER SPL55-4X Universal Joint DANA 50, DANA 60 4x4 Front Axle U-Joint GREASABLE Part#: SPL55-4X $61.77	Dana Spicer 50381 OUTER TUBE DUST SEAL Fits 1998 to 2004 FORD F-250, F-350, F-450, F-550 with DANA 60 front Part#: 50381 $11.95
Dana Spicer 50491 Outer Axle Seal Fits 1998 to 2004 FORD F-250, F-350, F-450, F-550 with DANA 60 front diff Part#: 50491 ~~$36.95~~ $32.55	Dana Spicer 41784-2 yellow O RING 1999 to 2004 FORD Super Duty F-250, F-350, F-450, F-550 with DANA 60 Front Axle Part#: 41784-2 $2.13
Dana Spicer 701166X Front Axle Thrust Washer Kit 1998 to 2004 FORD F-250, F-350 F-450, F-550 SUPER DUTY and EXCURSION with Dana 60 Front Axle Part#: 701166X $9.95	Dana Spicer 47766 Front Axle thrust Washer 1999 to 2004 FORD Super Duty F-250, F-350, F-450, F-550 with DANA 60 Front Axle LEAF SPRING FRONT Part#: 47766 $1.62

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.

[ X ]

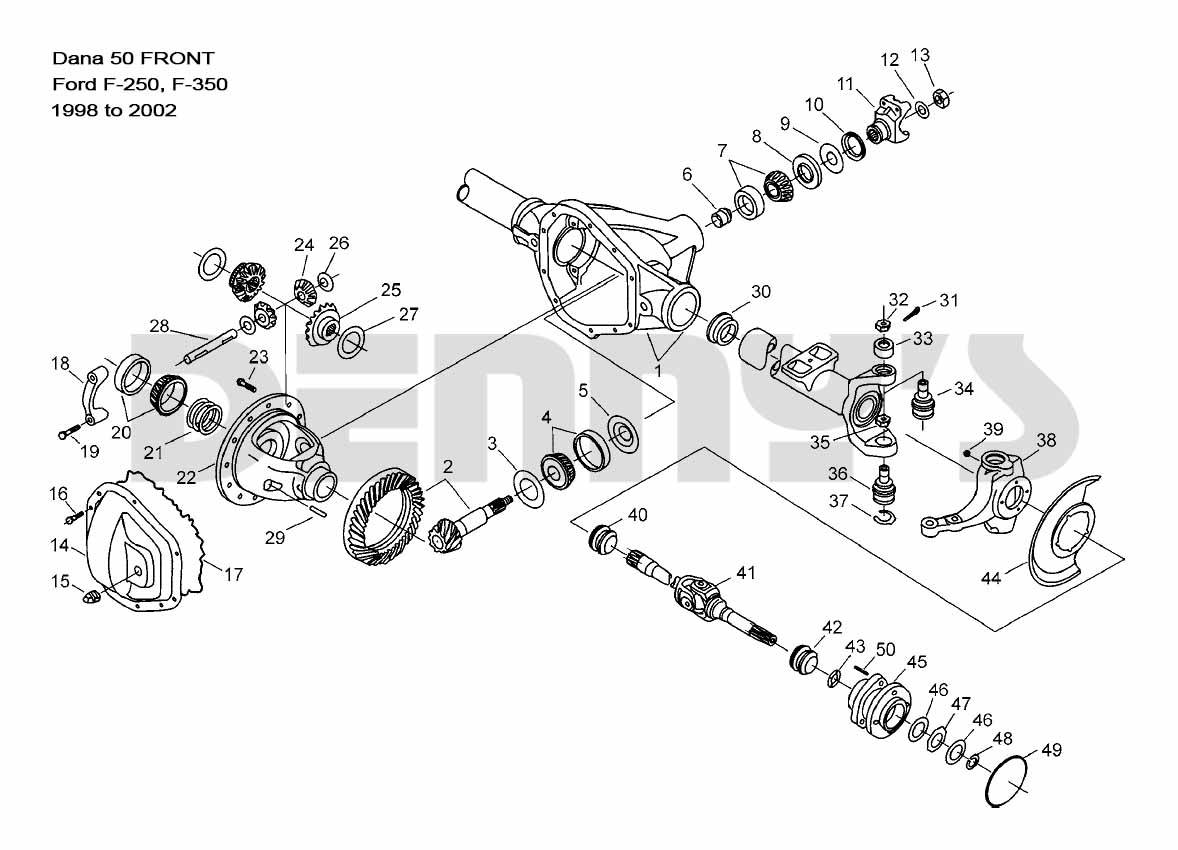

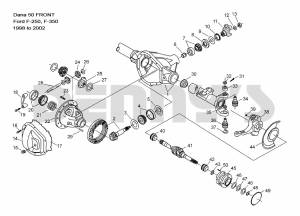

DANA 50 FRONT - FORD F250, F350 1999 to 2002 > AXLE PARTS > AXLE - OUTER
