Dana 50

Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front

Part Number:
2002692

UPC:

023913136864

Your Cost $105.49

STATUS: IN STOCK

DANA SPICER 2002692

OUTER AXLE SHAFT

Fits FORD SUPER DUTY F-250 and F-350 with DANA 50 FRONT

1999, 2000, 2001, 2002

Fits FORD EXCURSION with DANA 50 FRONT

2000, 2001, 2002, 2003, 2004, 2005

FITS 5-806X or SPL55-3X NON Greaseable, SPL55-4X Greaseable UNIVERSAL JOINT

B1 = 1.31 inch diameter with 30 splines

B = 9.31 inches Centerline of u-joint to end of yoke
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

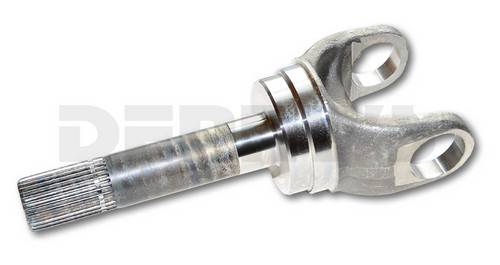

Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $105.49

DANA SPICER 2002692

OUTER AXLE SHAFT

Fits FORD SUPER DUTY F-250 and F-350 with DANA 50 FRONT

1999, 2000, 2001, 2002

Fits FORD EXCURSION with DANA 50 FRONT

2000, 2001, 2002, 2003, 2004, 2005

FITS 5-806X or SPL55-3X NON Greaseable, SPL55-4X Greaseable UNIVERSAL JOINT

B1 = 1.31 inch diameter with 30 splines

B = 9.31 inches Centerline of u-joint to end of yoke
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

Dana Spicer 2002692 Outer Axle Shaft for Dana 50 from 1999 to 2004 Ford Super Duty F-250, F-350 with DANA 50 Front and 2000 to 2005 Excursion with DANA 50 Front
