DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE fits 1975 to 2016 FORD F-250, F-250 Super Duty, F-350, F-350 Super Duty all with DANA 60 Front

Part Number:
SPL55-4X

UPC:

023913126216

Your Cost $61.77

STATUS: IN STOCK

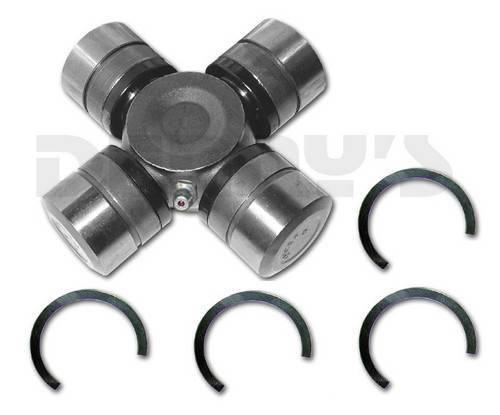

Dana Spicer SPL55-4X

Dana 60 Front Axle U-joint

GREASEABLE front axle universal joint...grease fitting in body
Fits FORD F-250 and F-250 Super Duty with Dana 60 Front Axles
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Fits FORD F-350 and F-350 Super Duty with Dana 60 Front Axles
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

DIMENSIONS

C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
1480WJ series
Replaces old number Dana Spicer part number 5-806X

See SPL55-3X for NON GREASEABLE version

DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE fits 1975 to 2016 FORD F-250, F-250 Super Duty, F-350, F-350 Super Duty all with DANA 60 Front

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $61.77

Dana Spicer SPL55-4X

Dana 60 Front Axle U-joint

GREASEABLE front axle universal joint ...grease fitting in body
Fits FORD F-250 and F-250 Super Duty with Dana 60 Front Axles
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Fits FORD F-350 and F-350 Super Duty with Dana 60 Front Axles
- 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

DIMENSIONS

C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
1480WJ series
Replaces old number Dana Spicer part number 5-806X

See SPL55-3X for NON GREASEABLE version

DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE fits 1975 to 2016 FORD F-250, F-250 Super Duty, F-350, F-350 Super Duty all with DANA 60 Front

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.

[ X ]

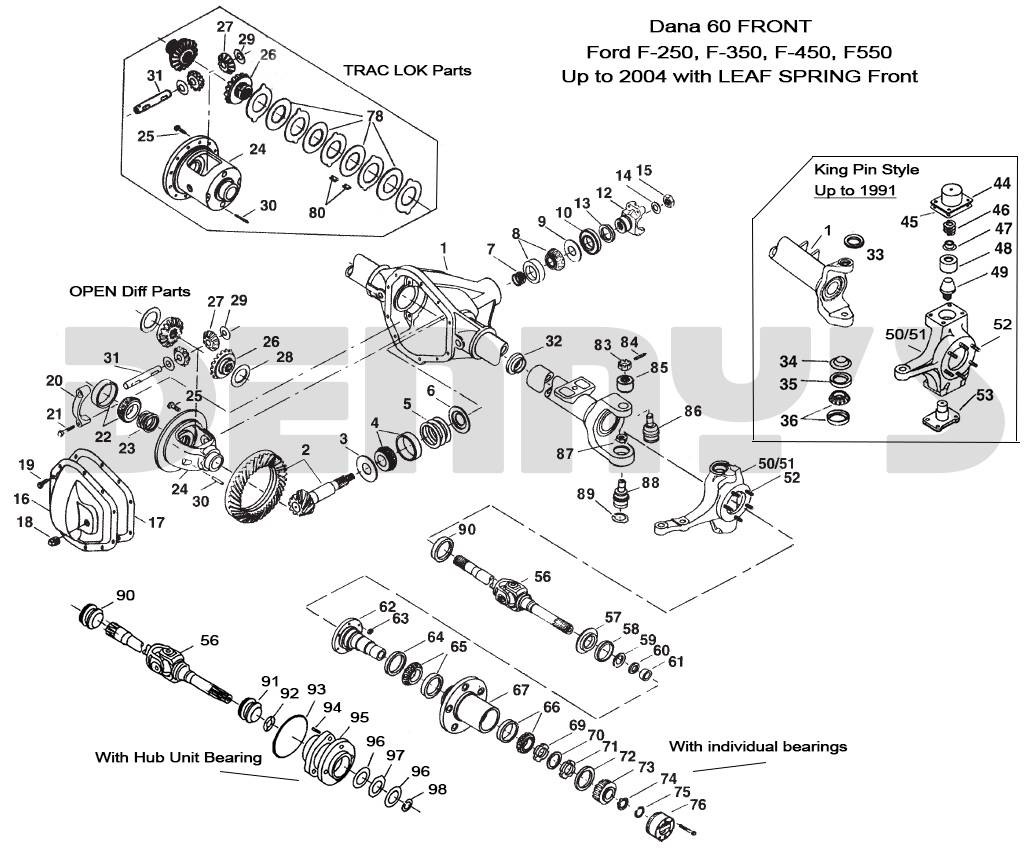

DANA 60 FRONT - FORD 1975 to 2004 > AXLE PARTS > AXLE U-JOINT > F250, F350 AXLE U-JOINT
