DANA 30 - with 26 spline pinion

DANA SPICER 3-4-5761-1X Pinion Yoke 1350 series fits JEEP DANA 30 with 26 spline pinion

Part Number:
3-4-5761-1X

UPC:

023913235512

Your Cost $129.95

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 3-4-5761-1X

PINION YOKE

Fits Jeep Dana 30 with 26 spline pinion

Strap and bolt set can be purchased separately at the bottom of this page.
1350 series
26 SPLINE
SPLINE OD = 1.146
D = 1.188
E = 3.625
Q = 1.500
R = 1.562
S = 3.000

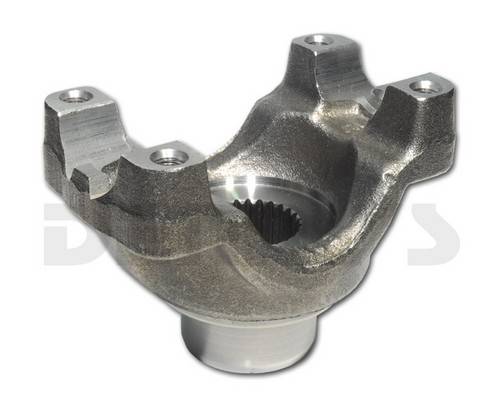

DANA SPICER 3-4-5761-1X Pinion Yoke 1350 series fits JEEP DANA 30 with 26 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $129.95

DANA SPICER 3-4-5761-1X

PINION YOKE

Fits Jeep Dana 30 with 26 spline pinion

Strap and bolt set can be purchased separately at the bottom of this page.
1350 series
26 SPLINE
SPLINE OD = 1.146
D = 1.188
E = 3.625
Q = 1.500
R = 1.562
S = 3.000

DANA SPICER 3-4-5761-1X Pinion Yoke 1350 series fits JEEP DANA 30 with 26 spline pinion

You May Also Need These Parts to Complete the Job

Dana Spicer 44895 Pinion Seal fits Dana 44 Part#: 44895 $8.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G $27.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54
DANA SPICER 3-70-28X Strap and Bolt set Part#: 3-70-28X $7.95
