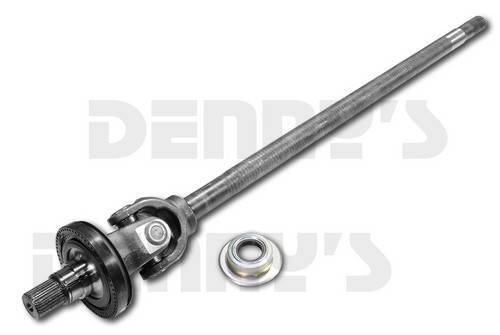

Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1
Part Number:
10013778


UPC:
023913498047

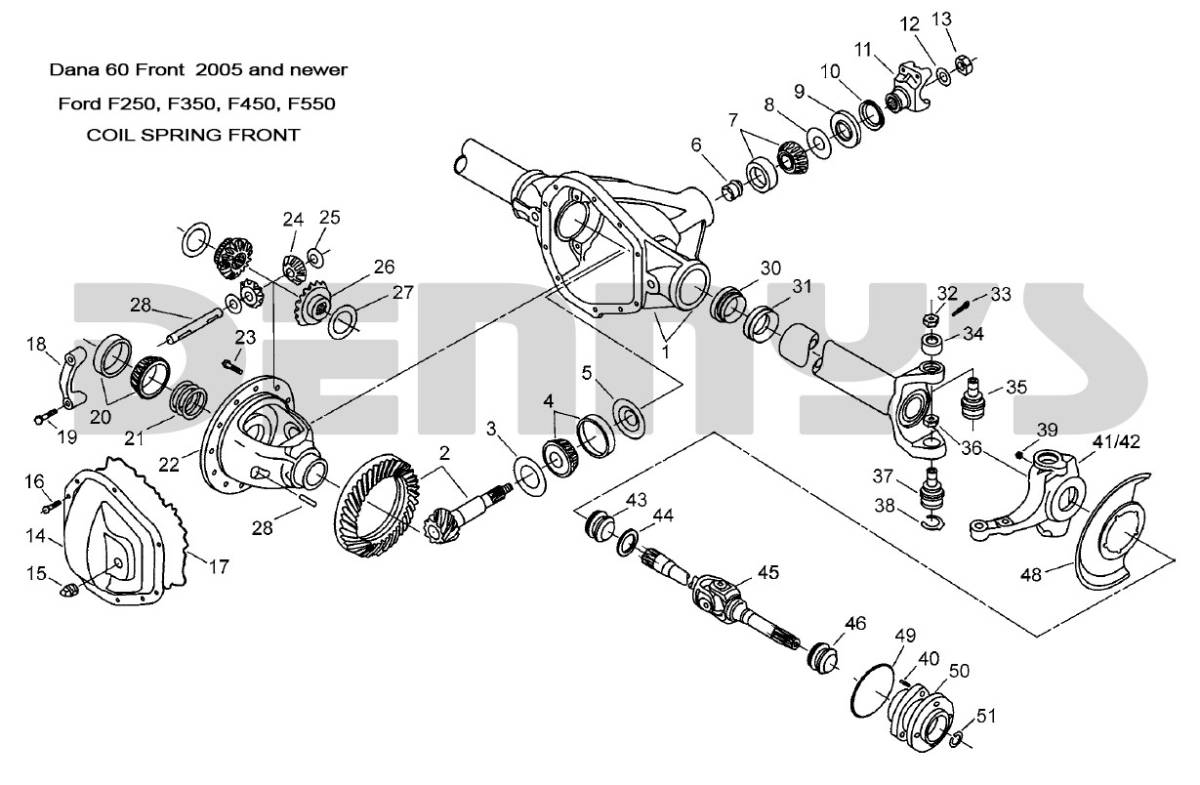

Diagram Number:
45
Your Cost $245.95 Sale Price $205.95
You Save $40.00
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 10013778

  • RIGHT SIDE Complete Front Axle Assembly
  • FULLY ASSEMBLED Ready to Install
    • Fits RH PASSENGER SIDE
  • Fits FORD F-250 and F-350 Super Duty with DANA 60 FRONT
    • Fits model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
    • REPLACES old Dana Spicer part numbers 2013564-1, 2022234-1, 2006005-1, 2006820-1, 2013341-1, 2013343-1, 84910-1



Spicer
Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1
Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $245.95 Sale Price $205.95
You Save $40.00
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 10013778

  • RIGHT SIDE Complete Front Axle Assembly
  • FULLY ASSEMBLED Ready to Install
    • Fits RH PASSENGER SIDE
  • Fits FORD F-250 and F-350 Super Duty with DANA 60 FRONT
    • Fits model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
    • REPLACES old Dana Spicer part numbers 2013564-1, 2022234-1, 2006005-1, 2006820-1, 2013341-1, 2013343-1, 84910-1

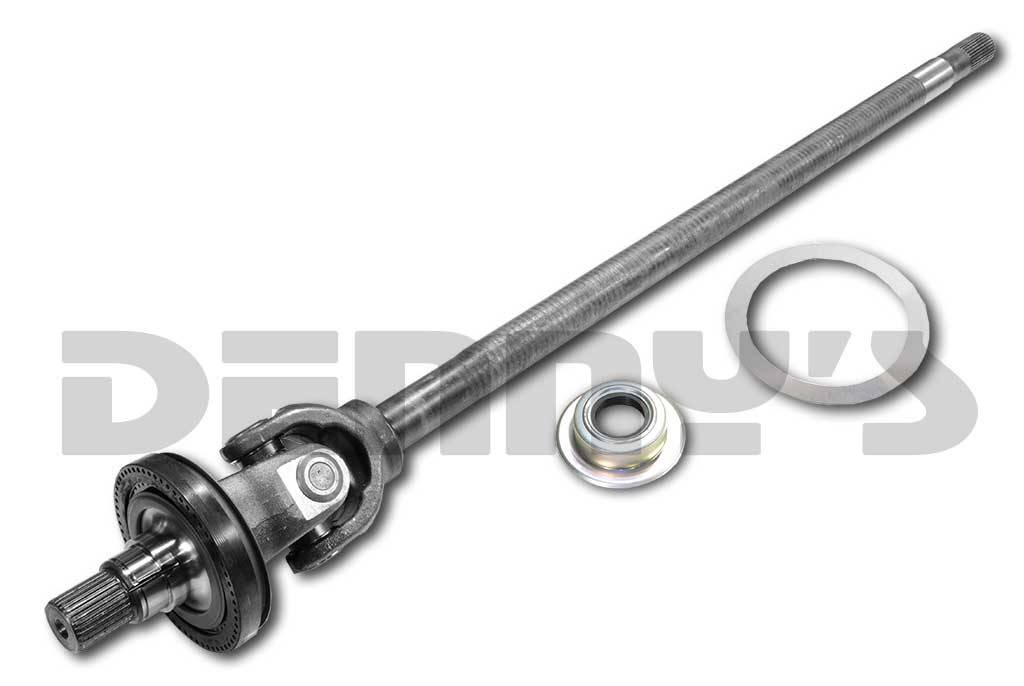

  • Dana Spicer 10013778 complete front axle factory assembled and ready to install.  This latest revised version replaces the original equipment 05 to 15 Super Duty axle shaft with larger axles and larger universal joint for superior strength over stock.
  • Direct bolt in ...no modifications necessary.
  • INCLUDES
    • OUTER AXLE SHAFT
    • 20023068 OUTER STUB AXLE SEAL
    • SPL70-4X Greaseable AXLE UNIVERSAL JOINT... 1550 series
    • INNER AXLE SHAFT
    • 2014835 OUTER TUBE SEAL
  • DIMENSIONS
    • A = 45.96 inches
    • B = 7.03 inches
      • B1 = 1.50 inches 35 splines
    • C = 38.93 inches
      • C1 = 1.50 inches 35 splines

NOTE: This axle shaft is the latest revised version and has a larger universal joint than was originally found on the 2005 to 2013.  This larger axle will fit all years from 2005 to 2016

image/jpeg
Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1

Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1

You May Also Need These Parts to Complete the Job

Dana Spicer 10013781 LEFT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-2 and 2022234-2
$225.95 $189.95
