Dana Spicer 10013781 LEFT SIDE AXLE ASSEMBLY fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA Super 60 FRONT Replaces 2013564-2 and 2022234-2

Part Number:
10013781

UPC:

023913490485

Your Cost ~~$225.95~~ Sale Price $195.95

You Save $30.00

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 10013781

LEFT SIDE Complete Front Axle Assembly
FULLY ASSEMBLED Ready to Install
- Fits LH DRIVERS SIDE
Fits FORD F-250 and F-350 Super Duty with DANA Super 60 FRONT
- Fits model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
- REPLACES old Dana Spicer part numbers 2013564-2 and 2022234-2

Dana Spicer 10013781 LEFT SIDE AXLE ASSEMBLY fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA Super 60 FRONT Replaces 2013564-2 and 2022234-2

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$225.95~~ Sale Price $195.95

You Save $30.00

DANA SPICER 10013781

LEFT SIDE Complete Front Axle Assembly
FULLY ASSEMBLED Ready to Install
- Fits LH DRIVERS SIDE
Fits FORD F-250 and F-350 Super Duty with DANA Super 60 FRONT
- Fits model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
- REPLACES old Dana Spicer part numbers 2013564-2 and 2022234-2

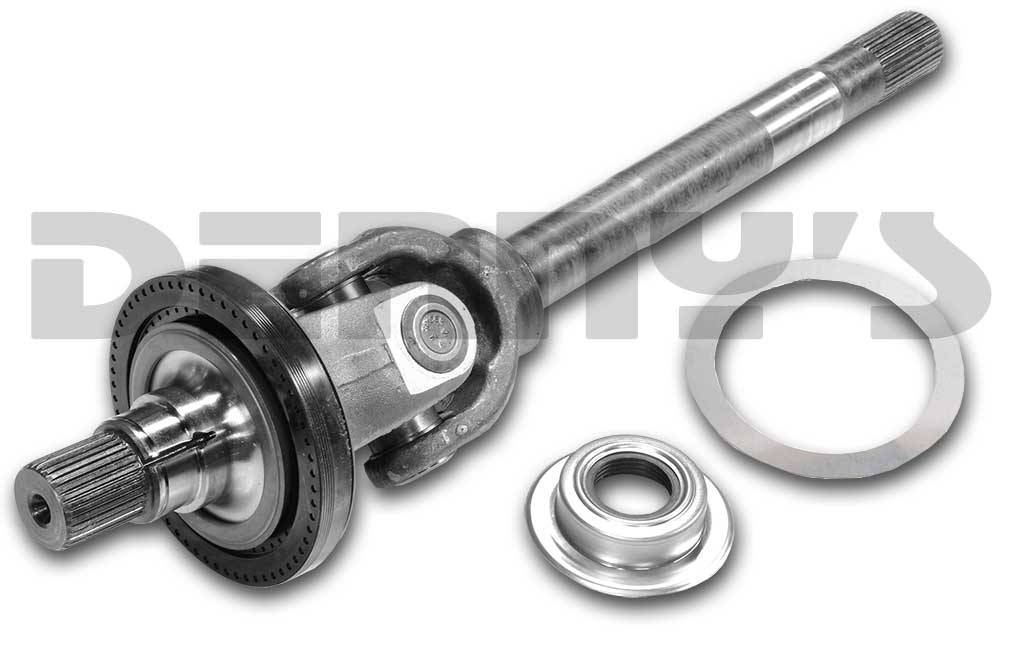

Dana Spicer 10013781 complete front axle factory assembled and ready to install. This latest revised version replaces the original equipment 05 to 16 Super Duty axle shaft with larger axles and larger universal joint for superior strength over stock.
Direct bolt in ...no modifications necessary.

INCLUDES
- OUTER AXLE SHAFT
- 20023068 OUTER STUB AXLE SEAL
- SPL70-4X Greaseable AXLE UNIVERSAL JOINT... 1550 series
- INNER AXLE SHAFT
- 2014835 OUTER TUBE SEAL

DIMENSIONS
- A = 23.72 inches
- B = 7.03 inches
  - B1 = 1.50 inches 35 splines
- C = 16.69 inches
  - C1 = 1.50 inches 35 splines

NOTE: This axle shaft is the latest revised version and has a larger universal joint than was originally found on the 2005 to 2013. This larger axle will fit all years from 2005 to 2016

Dana Spicer 10013781 LEFT SIDE AXLE ASSEMBLY fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA Super 60 FRONT Replaces 2013564-2 and 2022234-2

You May Also Need These Parts to Complete the Job

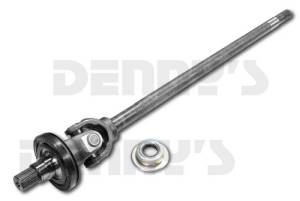

Dana Spicer 10013778 RIGHT SIDE AXLE ASSEMBLY fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT
