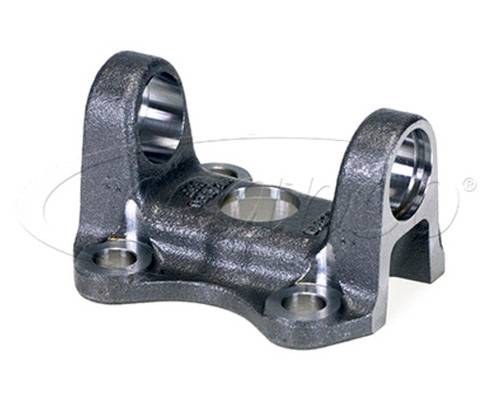

NEAPCO N2-2-949 Lincoln Mark VIII Flange Yoke fits original equipment driveshafts E8VY4782A

Part Number:
N2-2-949

UPC:

083869378749

Your Cost $95.95

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N2-2-949

Replaces DANA SPICER 2-2-949 and OEM FORD E8VY4782A

Lincoln Mk VIII 1330 Series Driveshaft Flange Yoke to fit 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most 1993 and newer Lincoln Mark VIII original equipment driveshafts.

NEAPCO N2-2-949 Lincoln Mark VIII Flange Yoke fits original equipment driveshafts E8VY4782A

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $95.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

NEAPCO N2-2-949

Replaces DANA SPICER 2-2-949 and OEM FORD E8VY4782A

Lincoln Mk VIII 1330 Series Driveshaft Flange Yoke to fit 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most 1993 and newer Lincoln Mark VIII original equipment driveshafts.

X = 2.5 inches
Y = 2.5 inches
Center Pilot Hole Diameter is 2.0 inches
1330 series
- 3.625 inches between snap rings
- D = 1.062 inch bearing cap diameter

Flange Yokes - Flange Yokes	Model/Part #: N2-2-949
A.) Flange or Swing Dia.	4.469
B) Bolt Circle Dia.	3.500
Bolt Hole Dia. (NOM)	.484-D
Number of Bolt Holes	4
C) Pilot Dia. M=male F=female	2.000-F
G) Flange Face to C/L	1.625

Denny's Driveshafts Flange Yoke Dimension Diagram
