NEAPCO N2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A

Part Number:
N2-2-949

UPC:

083869378749

Your Cost ~~$105.95~~ Sale Price $95.95

You Save $10.00

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N2-2-949

Replaces DANA SPICER 2-2-949 and OEM FORD E8VY4782A

1330 Series Ford Flange Yoke to fit 7.5 inch and 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most Ford and Mustang 7.5 and 8.8 rear ends.

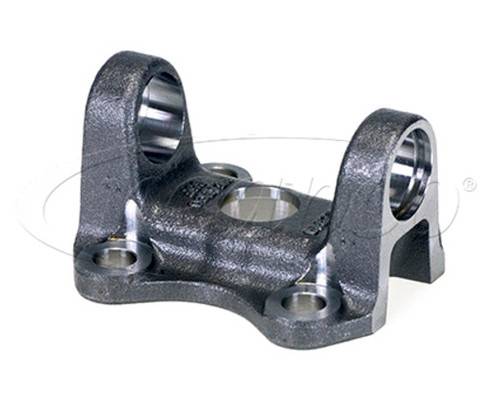

NEAPCO N2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$105.95~~ Sale Price $95.95

You Save $10.00

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

NEAPCO N2-2-949

Replaces DANA SPICER 2-2-949 and OEM FORD E8VY4782A

1330 Series Ford Flange Yoke to fit 7.5 inch and 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most Ford and Mustang 7.5 and 8.8 rear ends.

X = 2.5 inches
Y = 2.5 inches
Center Pilot Hole Diameter is 2.0 inches
1330 series
- 3.625 inches between snap rings
- D = 1.062 inch bearing cap diameter

Flange Yokes - Flange Yokes	Model/Part #: N2-2-949
A.) Flange or Swing Dia.	4.469
B) Bolt Circle Dia.	3.500
Bolt Hole Dia. (NOM)	.484-D
Number of Bolt Holes	4
C) Pilot Dia. M=male F=female	2.000-F
G) Flange Face to C/L	1.625

Denny's Driveshafts Flange Yoke Dimension Diagram

NEAPCO N2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A

You May Also Need These Parts to Complete the Job

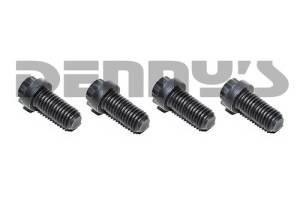

42-1855 BOLT Set M12-1.75 for Pinion Flange fits FORD 7.5 and 8.8 inch Rear Ends - 12mm 12 point bolt set Part#: 42-1855 $11.95	NEAPCO 2-4800 - 1330 Series Greaseable Universal Joint Part#: 2-4800 ~~$18.25~~ $17.38
