SONNAX T3-3-4281HP Forged Chromoly Transmission Slip Yoke for GM 700R, 4L60, 4L65, 4L70 1350 Series 27 spline | FREE SHIPPING

Part Number:
T3-3-4281HP

UPC:

Your Cost $175.92

STATUS: IN STOCK - FREE SHIPPING

SONNAX T3-3-4281HP

FORGED CROMOLY 1350 series Transmission Slip Yoke
27 spline
Fits 700R and 4L60, 4L65, 4L70 Transmission
NO Vent hole in plug

SONNAX T3-3-4281HP Forged Chromoly Transmission Slip Yoke for GM 700R, 4L60, 4L65, 4L70 1350 Series 27 spline | FREE SHIPPING

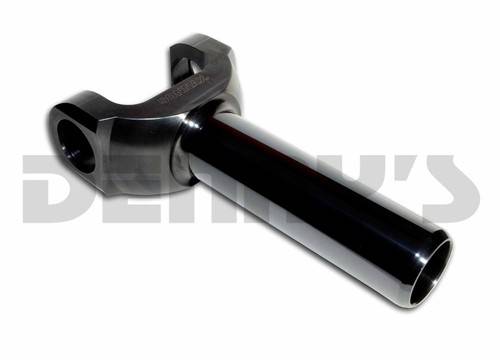

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $175.92

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

SONNAX T3-3-4281HP

FORGED CROMOLY 1350 series Transmission Slip Yoke
27 spline
Fits 700R and 4L60, 4L65, 4L70 Transmission
NO Vent hole in plug

Use this slip yoke to upgrade from a cast slip yoke to help eliminate spline twisting so common on 27 spline slip yokes when using with high horsepower.

Length to center of u-joint... Dimension #1 = 6.940 inches
Barrel Diameter... Dimension #2 = 1.503 inches
Barrel Length... Dimension #3 = 5.130 inches
U-joint cap diameter... Dimension #4 = 1 3/16 inches
U-joint width... Dimension #5 = 3 5/8 inches
Series... 1350
Spline count... 27
Counterbored = .410
