Driveshaft and Driveline Parts > WELD YOKES - TUBE YOKES - STEEL > 1810 Series

DANA SPICER 6.5-28-127 Weld Yoke 1810 Series fits 4.500 inch .259 wall tube

Part Number:
6.5-28-127

UPC:

023913212322

Your Cost $179.95

STATUS: FACTORY DIRECT TO YOU

DANA SPICER 6.5-28-127

1810 Series Weld Yoke

Fits 4.500 inch OD X .259 wall tubing
- F - Butt Diameter = 4.003
Series = 1810
Lock up style = BEARING PLATE
E - Universal Joint Width = 7.547
D - Universal Joint Bore = 1.938
H - Center of u-joint bore to point of weld = 3.375
Special Notes: USE KIT 5-281X, 5-676X

Spicer

DANA SPICER 6.5-28-127 Weld Yoke 1810 Series fits 4.500 inch .259 wall tube

DANA SPICER 6.5-28-127 Weld Yoke 1810 Series fits 4.500 inch .259 wall tubing

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT TO YOU

YOUR COST: $179.95

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

DANA SPICER 6.5-28-127

1810 Series Weld Yoke

Fits 4.500 inch OD X .259 wall tubing
- F - Butt Diameter = 4.003
Series = 1810
Lock up style = BEARING PLATE
E - Universal Joint Width = 7.547
D - Universal Joint Bore = 1.938
H - Center of u-joint bore to point of weld = 3.375
Special Notes: USE KIT 5-281X, 5-676X

CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

DANA SPICER 6.5-28-127 Weld Yoke 1810 Series fits 4.500 inch .259 wall tube

DANA SPICER 6.5-28-127 Weld Yoke 1810 Series fits 4.500 inch .259 wall tubing

You May Also Need These Parts to Complete the Job

DANA SPICER 5-281X Universal joint 1810 Series Bearing Plate Style Part#: 5-281X $92.55	DANA SPICER 5-676X Universal Joint 1810 Series fits HALF ROUND Driveshaft yoke Part#: 5-676X $95.95

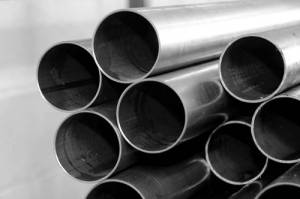

4.500 x .259 DANA SPICER 36-30-22-7300 DOM DRIVESHAFT TUBING - 73 INCH LENGTH Part#: 36-30-22-7300 $511.89
