Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

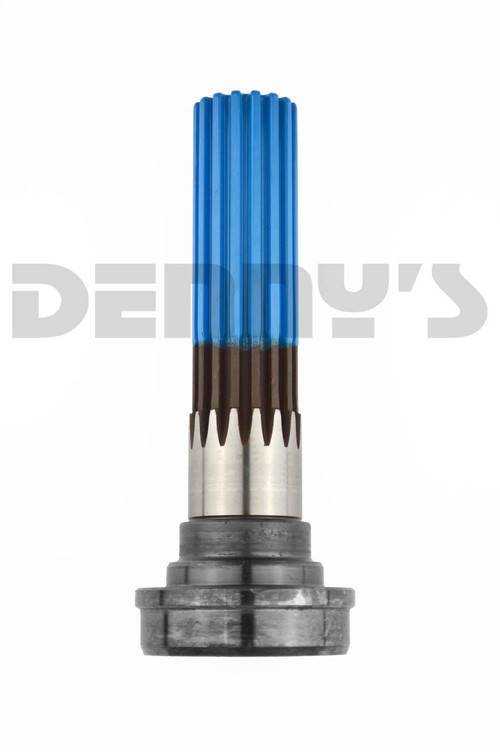

Dana Spicer 3-53-1031 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines
Part Number:
3-53-1031


UPC:
023913235635
Your Cost $97.31 Sale Price $81.50
You Save $15.81
STATUS:  IN STOCK

DANA SPICER 3-53-1031

  • MIDSHIP SPLINE
  • Use with Center Support Bearing

Spicer
Dana Spicer 3-53-1031 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines
Dana Spicer 3-53-1031 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.500 inch Diameter with 16 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $97.31 Sale Price $81.50
You Save $15.81

DANA SPICER 3-53-1031

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
    • Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .083 inch Tube wall thickness
    • Major SPLINE Diameter = 1.500
    • SPLINES = 16
    • STYLE = 1
    • B = 1.810
    • C = 1.575
    • G = .875
    • K = 7.062
    • L = 4.438
    • Y = 5.940
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 3-53-1031 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines

Dana Spicer 3-53-1031 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.500 inch Diameter with 16 Splines
