Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Dana > Dana 60, 61 and Dana 70 > 29 SPLINES > 29 SPLINE - 1350 Series

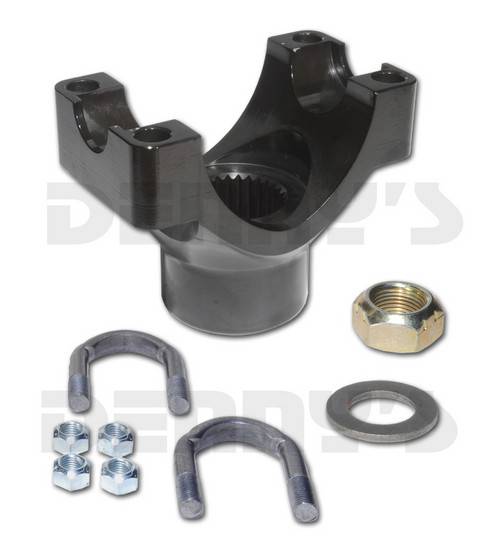

9522421 CHROMOLY Pinion Yoke 1350 series fits Dana 60, 61, 70 with 29 Spline pinion

Part Number:
9522421

UPC:

Your Cost $169.95

STATUS: IN STOCK - FREE SHIPPING

9522421

Chromoly Pinion Yoke 1350 Series

Fits Dana 60, 61, 70
- Fits Dana 60, 61, 70 front end or rear ends with 29 spline pinion gear
Fits 1350 Series universal joint
- E = 3.625 between tab shoulders
- D = 1.188 Bearing Cap Diameter
29 spline
Forged 4340 Chromoly for superior strength

INCLUDES

Pinion nut and washer
1350 series u-bolt set.

DIMENSIONS

S = 3.00 inch
R = 1.875 inch
Q = 1.500 inch
- full spline - no counterbore
SPLINE OD = 1.276 inch
Washer OD = 1.500 inch
Washer ID = .900 inch
Washer thickness = .120 inch
Socket wrench size for nut = 1-5/16 inch

9522421 CHROMOLY Pinion Yoke 1350 series fits Dana 60, 61, 70 with 29 Spline pinion

9522421 CHROMOLY Pinion Yoke 1350 series fits Dana 60, 61, 70 with 29 Spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $169.95

9522421

Chromoly Pinion Yoke 1350 Series

Fits Dana 60, 61, 70
- Fits Dana 60, 61, 70 front end or rear ends with 29 spline pinion gear
Fits 1350 Series universal joint
- E = 3.625 between tab shoulders
- D = 1.188 Bearing Cap Diameter
29 spline
Forged 4340 Chromoly for superior strength

INCLUDES

Pinion nut and washer
1350 series u-bolt set.

DIMENSIONS

S = 3.00 inch
R = 1.875 inch
Q = 1.500 inch
- full spline - no counterbore
SPLINE OD = 1.276 inch
Washer OD = 1.500 inch
Washer ID = .900 inch
Washer thickness = .120 inch
Socket wrench size for nut = 1-5/16 inch

image/jpeg

9522421 CHROMOLY Pinion Yoke 1350 series fits Dana 60, 61, 70 with 29 Spline pinion

9522421 CHROMOLY Pinion Yoke 1350 series fits Dana 60, 61, 70 with 29 Spline pinion
