Use with 3.0 INCH TUBING

Dana Spicer 3-53-1181 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 31/32 Splines

Part Number:
3-53-1181

UPC:

023913231989

Your Cost ~~$192.88~~ Sale Price $161.54

You Save $31.34

STATUS: IN STOCK

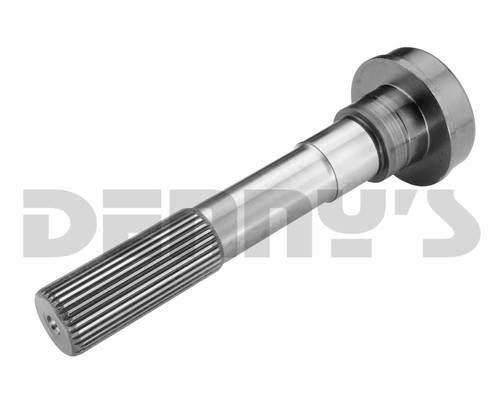

DANA SPICER 3-53-1181

MIDSHIP SPLINE
Designed for use with Center Support Bearing
Can also be used without center support bearing on a 2 joint spline and slip driveshaft

Dana Spicer 3-53-1181 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 31/32 Splines

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$192.88~~ Sale Price $161.54

You Save $31.34

DANA SPICER 3-53-1181

MIDSHIP SPLINE
Designed for use with Center Support Bearing
Can also be used without center support bearing on a 2 joint spline and slip driveshaft

Fits any series 31 based on 32 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 31/32
- STYLE = 2
- B = 1.719
- C = 1.378
- G = 1.125
- K = 8.812
- L = 3.344
- Y = 7.469
SPECIAL NOTES: Steel splines no coating

CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 3-53-1181 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 31/32 Splines
