Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING

Part Number:
706570X

UPC:

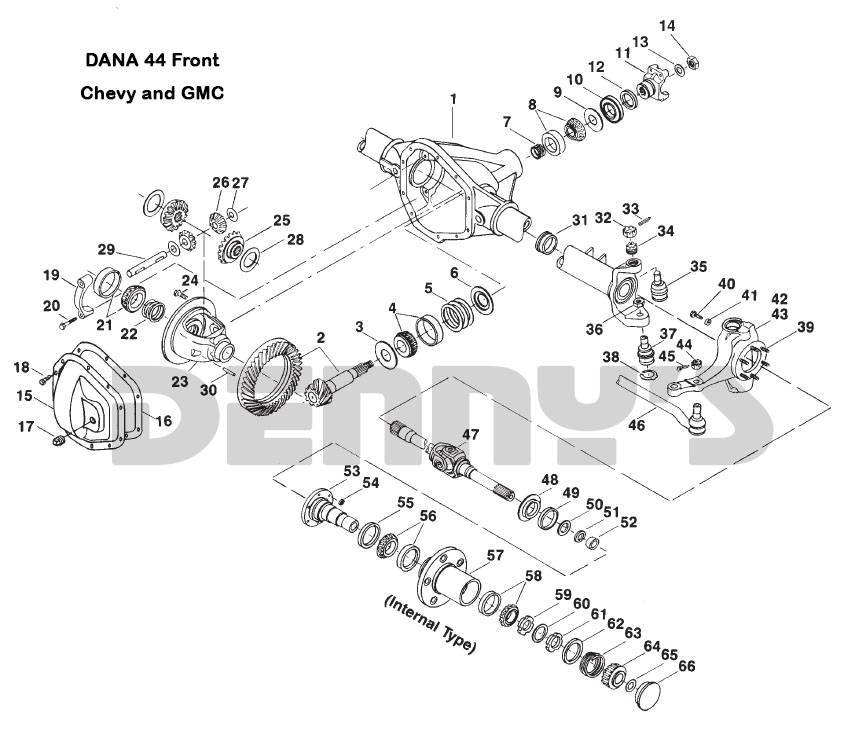

Diagram Number:
53

Your Cost $263.50

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

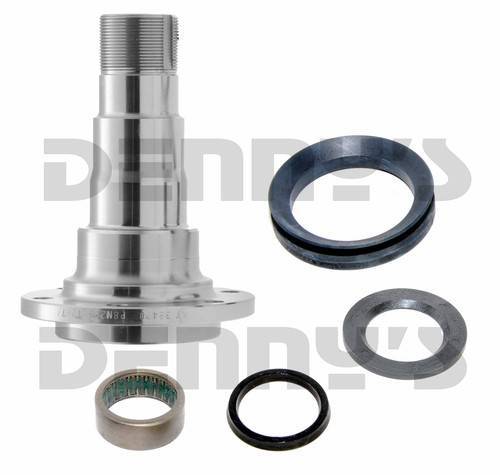

DANA SPICER 706570X

SPINDLE with bearing and seal kit

Comes with 706527X splindle beaing and seal kit
Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $263.50

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 706570X

SPINDLE with bearing and seal kit

Comes with 706527X splindle beaing and seal kit
Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
