Dana Spicer 73579-2X INNER AXLE Drivers Side 18.32 inches 15 Splines fits 1988 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

Part Number:
73579-2X

UPC:

023913135287

Diagram Number:

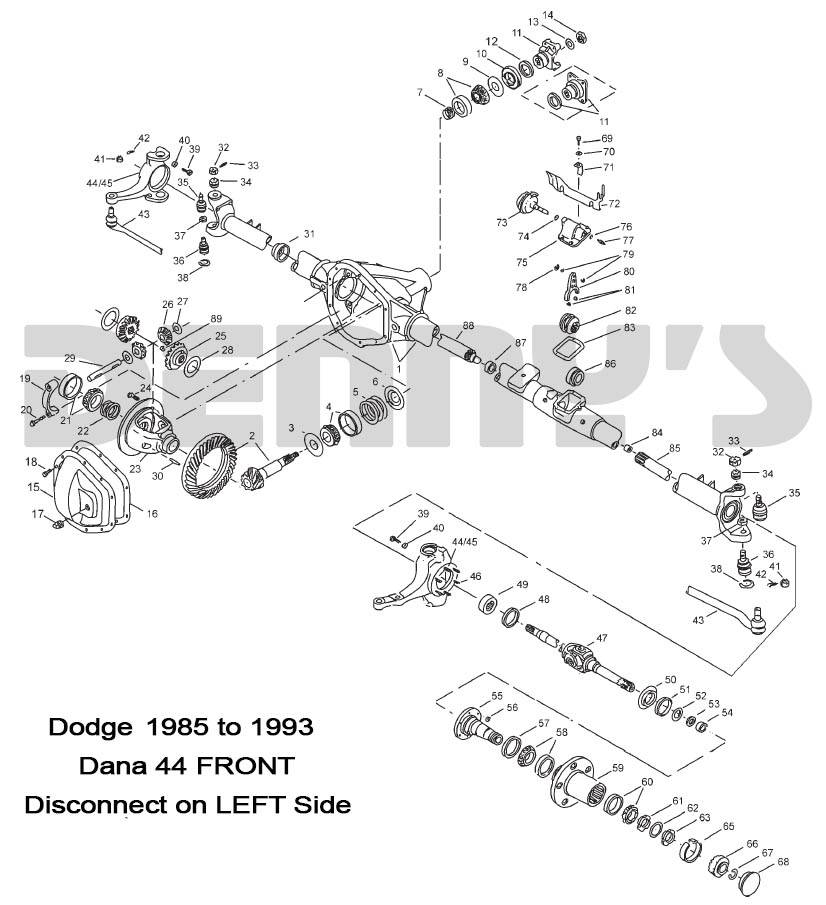

85-IN

Your Cost $445.95

STATUS: IN STOCK - FREE SHIPPING

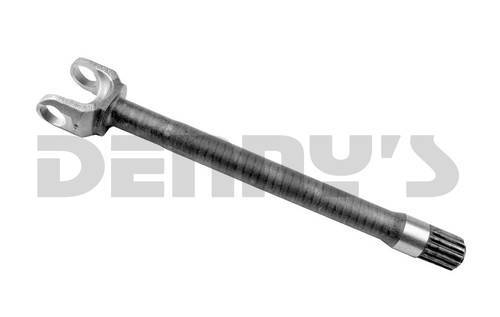

DANA SPICER 73579-2X

INNER AXLE SHAFT - DRIVERS SIDE
- Fits 1988 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
  - CHECK to be sure Dimension C = 18.32 inches on original axle before buying
  - If your inner axle shaft dimension C = 19.19 inches ...See Part Number 73579-1X

YOU HAVE 2 CHOICES....READ CAREFULLY and CHECK Dimension C BEFORE ORDERING

IMPORTANT NOTES:

73579-2X DOES NOT FIT 1985 TO 1987 with the bearing and seal at the end of the left side housing tube.
73579-2X DOES NOT have the machined bearing surface required on the 1985 to 1987

Dana Spicer 73579-2X INNER AXLE Drivers Side 18.32 inches 15 Splines fits 1988 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $445.95

DANA SPICER 73597-2X

INNER AXLE SHAFT - DRIVERS SIDE
- Fits 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
  - CHECK to be sure Dimension C = 18.32 inches on original axle before buying
  - If your inner axle shaft dimension C = 19.19 inches ...See Part Number 73579-1X

YOU HAVE 2 CHOICES....READ CAREFULLY and CHECK Dimension C BEFORE ORDERING

IMPORTANT NOTES:

73579-2X DOES NOT FIT 1985 TO 1987 with the bearing and seal at the end of the left side housing tube.
73579-2X DOES NOT have the machined bearing surface required on the 1985 to 1987

DIMENSIONS

15 SPLINES
C1 = 1.59 inch diameter with 15 splines
C = 18.32 inches Centerline of u-joint to end of yoke
Requires 5-760X Axle Universal Joint
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 73579-2X INNER AXLE Drivers Side 18.32 inches 15 Splines fits 1988 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle
