Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
Part Number:
75265X


UPC:
023913149352

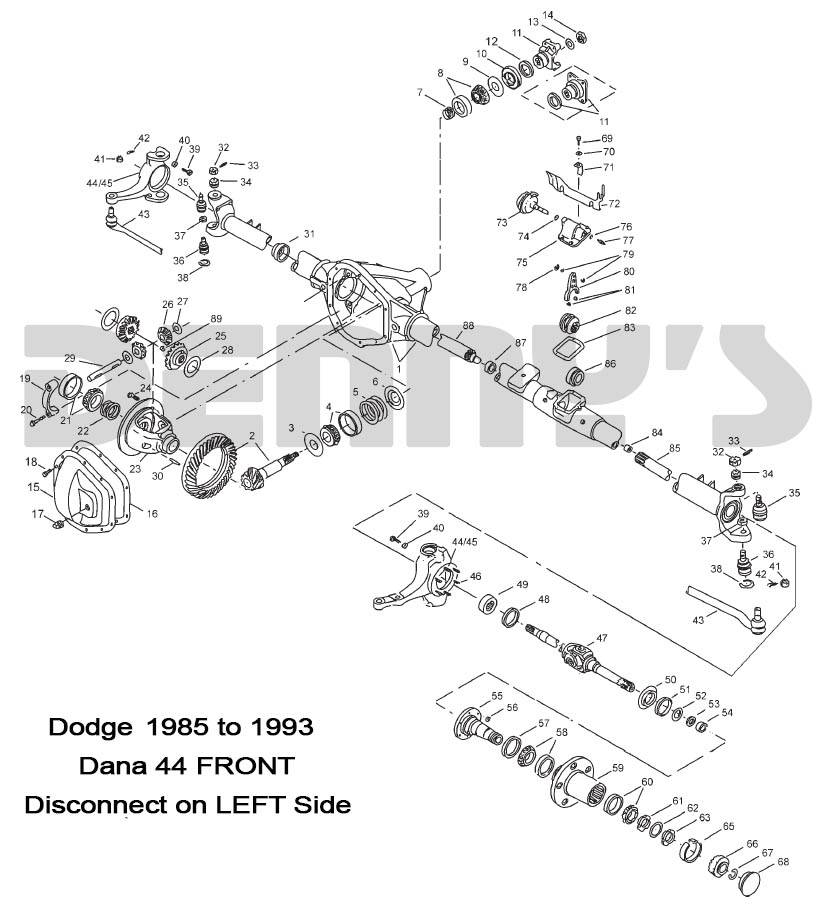

Diagram Number:
88
Your Cost $119.95
STATUS:  IN STOCK - FREE SHIPPING

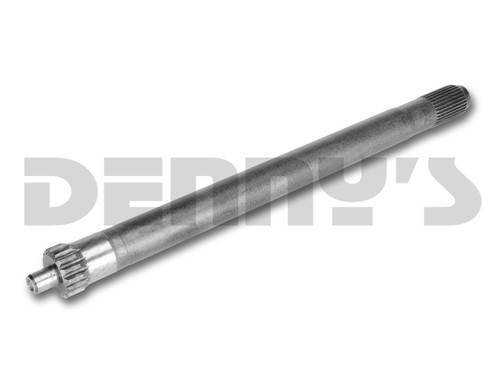

DANA SPICER 75265X

INTERMEDIATE SHAFT - Drivers Side

15 SPLINE

  • Fits DODGE W150, W200, W250 with Dana 44 Disconnect front axle
    • Fits 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Drivers Side
    • Replaces old part number 45770
Spicer
Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $119.95

DANA SPICER 75265X

INTERMEDIATE SHAFT - Drivers Side

15 SPLINE

  • Fits DODGE W150, W200, W250 with Dana 44 Disconnect front axle
    • Fits 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Drivers Side
    • Replaces old part number 45770



Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle

Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
