Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

9585859 Chromoly Pinion yoke 1350 series fits Chevy Impala SS 8.5 inch 10 Bolt rear with 30 spline pinion
Part Number:
9585859


UPC:
Your Cost $186.95 Sale Price $169.95
You Save $17.00
STATUS:  IN STOCK - FREE SHIPPING

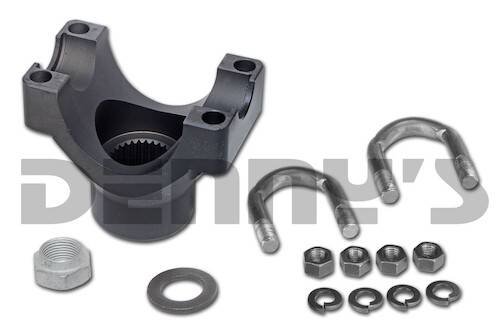

9585859

Chromoly Pinion yoke

Fits Chevy Impala SS 8.5 inch 10 Bolt rear end with 30 spline pinion

  • 1350 series
    • Fits 3.625 in. wide 1350 u-joint
    • Fits 1.188 in. cap diameter
  • Chromoly
  • U-Bolt style
  • 3.188 inches tall
  • 30 splines
  • NOTE: This is a high performance chromoly pinion yoke and does not come with a dust shield and no provision to attach one.

Includes u-bolts, pinion nut and washer

9585859 Chromoly Pinion yoke 1350 series fits Chevy Impala SS 8.5 inch 10 Bolt rear with 30 spline pinion
9585859 Chromoly Pinion yoke 1350 series fits Chevy Impala SS 8.5 inch 10 Bolt rear with 30 spline pinion
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $186.95 Sale Price $169.95
You Save $17.00

9585859

Chromoly Pinion yoke

Fits Chevy Impala SS 8.5 inch 10 Bolt rear end with 30 spline pinion

  • 1350 series
    • Fits 3.625 in. wide 1350 u-joint
    • Fits 1.188 in. cap diameter
  • Chromoly
  • U-Bolt style
  • 3.188 inches tall
  • 30 splines
  • NOTE: This is a high performance chromoly pinion yoke and does not come with a dust shield and no provision to attach one.

Includes u-bolts, pinion nut and washer

This is one of the very best ways to upgrade your Chevy Impala SS or GM Corporate 8.5 inch 10 bolt pinion yoke.  1350 series Chromoly Pinion Yoke with u-bolt set, pinion nut and washer. The GM 3R series original equipment pinion yoke utilizes a strap and bolt design to hold the u-joint in place and the yoke is of a cast material.   Our 1350 Series Chromoly pinion yoke for the 8.5 inch 10 bolt is a u-bolt design and eliminates the possibility of yoke and/or strap failure.  Inexpensive upgrade for any high performance application.  Ultimate strength and reliability... 1350 series Chromoly.

9585859 Chromoly Pinion yoke 1350 series fits Chevy Impala SS 8.5 inch 10 Bolt rear with 30 spline pinion

9585859 Chromoly Pinion yoke 1350 series fits Chevy Impala SS 8.5 inch 10 Bolt rear with 30 spline pinion
